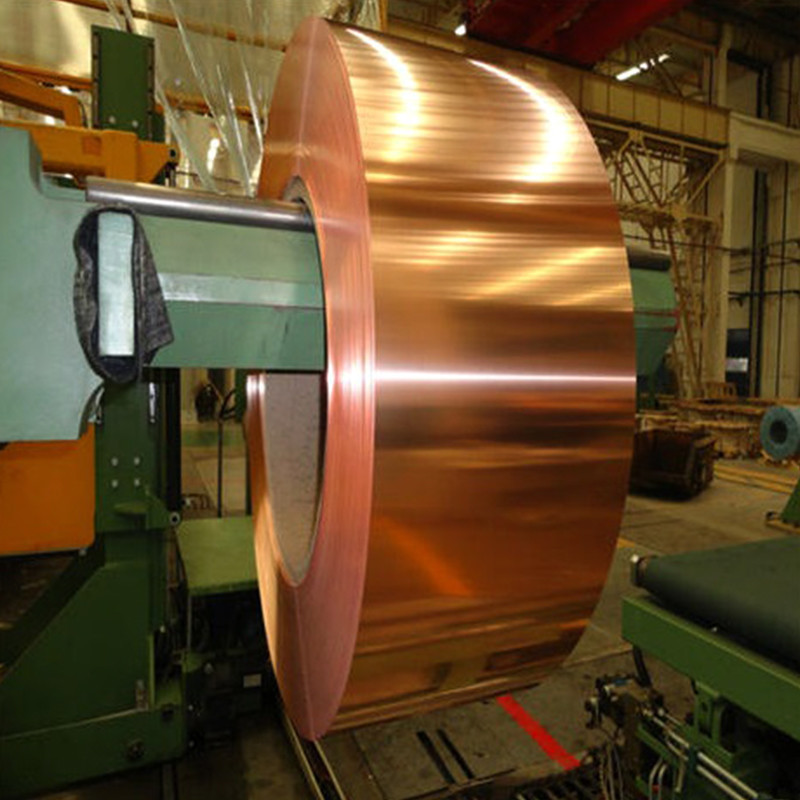

ASTM Copper Strip Roll C10100 C10400 Copper Foil Roll
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Copper Strip |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3~10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Copper Strip | Standard | ASTM, AISI, JIS, DIN, GB, EN |
|---|---|---|---|
| Shape | Strip Coil Roll | Edge | Rounded, Smooth, No Burrs |
| Purity(Cu+Ag) | Greater Than Or Equal 99.9% | Thickness | As Required |
| High Light | ASTM Copper Strip Roll,C10100 Copper Strip Roll,C10400 Copper Foil Roll |
||
Product Description
Application of Copper Strip
1. Electrical wiring: Copper strips are commonly used in electrical wiring due to their excellent electrical conductivity and low resistance.
2. Electrical contacts and connectors: Copper strips are used in electrical contacts and connectors due to their excellent conductivity and ability to be easily formed and shaped.
3. Heat exchangers: Copper strips are used in heat exchangers due to their excellent thermal conductivity and corrosion resistance, which allows for efficient heat transfer.
4. Circuit boards: Copper strips are used in the manufacture of printed circuit boards due to their electrical conductivity and ability to be easily etched and shaped.
5. Transformers: Copper strips are used in transformers due to their high conductivity and ability to withstand high temperatures.
6. Roofing and gutters: Copper strips are used in roofing and gutters due to their corrosion resistance and longevity.
7. Industrial machinery: Copper strips are used in a variety of industrial machinery applications, such as motors, generators, and pumps, due to their excellent electrical and thermal conductivity.
Overall, copper strips are a versatile material that can be used in a wide range of applications where electrical conductivity, thermal conductivity, and corrosion resistance are important.
| Item | Copper Strip / Copper Tape | |
| Standard |
JIS H3100-2006 ,ASTM B152M-06,GB/T 2040-2008,ROCT 495-92,EN 1652-98,ASTM B171M-04, |
|
| Material |
C12300,C1020P,C10100,C10400,C10700,C10200,T2,C1100P,C10500,M1,CuETP,TP1, C1201P, ,C1221P,C1200,C12200,C14200,C23000P,H62,C2801P,C36500 |
|
| Thickness | 0.01mm~20mm | |
| Width | 1mm~2500mm | |
| Length | Random size and customize or as required | |
| Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required | |
| Package | Standard export seaworthy or as customers' requirements | |
| Application |
Copper coil can be made to do all sorts of deep drawing and bending stress components,such as manufacturing pins ,rivets,gasket,nuts,conduits,the barometer spring,screen,radiator parts, etc |
|
| Export to |
Ireland,Singapore,Indonesia,Ukraine,Saudi,Arabia,Spain,Canada,USA,Brazil,Thailand,Iraq, ,Korea,Argentina,India,Egypt,Oman,Malaysia,Peru,Vietnam,Mexico,etc |
|
| Material | China GB/T | Japan JIS | German DIN | American ASTM | UK EN |
| TU0 | C1011 | -- | C10100 | C110 | |
| TU1 | C1020 | OF-CU | C10200 | C103 | |
| TU2 | C1020 | OF-CU | C10200 | C103 | |
| T1 | C1020 | OF-CU | C10200 | C103 | |
| T2 | C1100 | SE-CU | C11000 | C101 | |
| TP1 | C1201 | SW-CU | C12000 | -- | |
| TP2 | C1220 | SF-CU | C12000 | -- |
| Composition(%) | ||||
| TU1 | Cu | P | O | Other |
| TU2 | 99.97 | 0.002 | less than 0.002 | balance |
| T1 | 99.95 | 0.002 | less than 0.003 | balance |
| T2 | 99.9 | - | - | balance |
| TP1 | 99.9 | 0.004-0.012 | - | balance |
| TP2 | 99.9 | 0.015-0.040 | - | balance |
| C10200 | 99.95 | 0.001-0.005 | - | balance |
| C11000 | 99.9 | - | - | balance |
| C12000 | 99.9 | 0.004-0.012 | - | balance |
| C12200 | 99.9 | 0.015-0.040 | - | balance |
Quality Control
Production Processing
Packing & Delivery
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
A: We provide after-sale service and offer 100% guarantee on our products.
