C11000 CuDLP Copper Strip Coil 0.5 Mm JIS DIN Standard
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Copper Strip |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3~10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Copper Strip | Standard | ASTM, AISI, JIS, DIN, GB, EN |
|---|---|---|---|
| Shape | Strip Coil Roll | Edge | Rounded, Smooth, No Burrs |
| Purity(Cu+Ag) | Greater Than Or Equal 99.9% | Grade | Pure Copper |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching | ||
| High Light | C11000 Copper Strip Coil,CuDLP Copper Strip Coil,JIS copper strip 0.5 mm |
||
Product Description

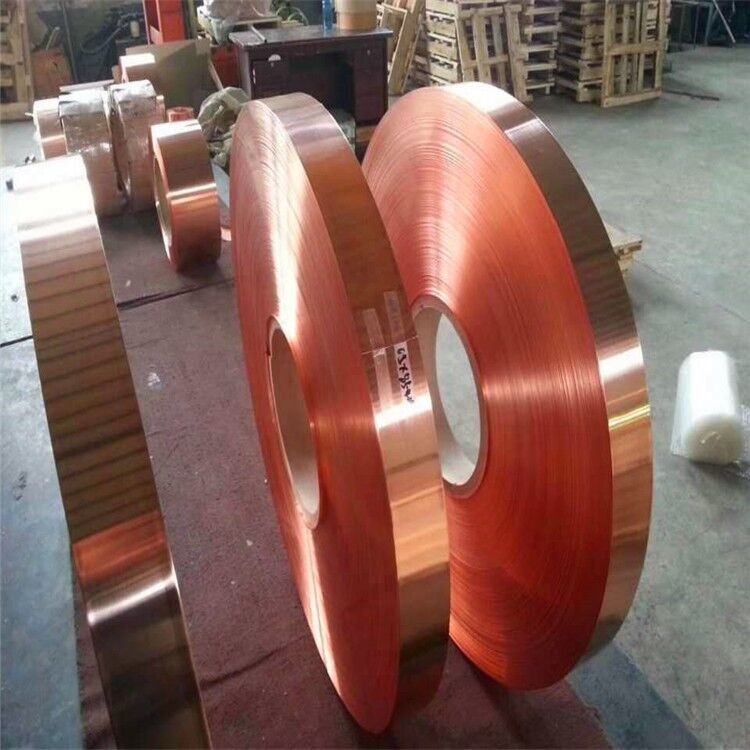

Copper Strip
Copper strip is a flat, thin piece of copper that is typically less than 0.25 inches thick and can range in width from a fraction of an inch to several inches. Copper strip is made from pure copper or copper alloys and is used in a wide range of applications due to its excellent electrical conductivity, thermal conductivity, corrosion resistance, and ductility.
Ingredients of Copper Strip
Copper strips are typically made from pure copper or copper alloys, which are mixtures of copper and other metals. The composition of copper alloys can vary depending on the specific application and the desired properties of the strip.
Some common copper alloys used in the production of copper strips include:
Brass: Brass is an alloy of copper and zinc, and it is commonly used in applications where strength, corrosion resistance, and aesthetics are important.
Bronze: Bronze is an alloy of copper and tin, and it is commonly used in applications where strength, durability, and resistance to wear and tear are important.
Cupronickel: Cupronickel is an alloy of copper, nickel, and sometimes other metals, and it is commonly used in marine applications due to its excellent resistance to corrosion.
Phosphor bronze: Phosphor bronze is an alloy of copper, tin, and phosphorus, and it is commonly used in electrical applications due to its excellent electrical conductivity and resistance to corrosion.
Beryllium copper: Beryllium copper is an alloy of copper and beryllium, and it is commonly used in applications where high strength, conductivity, and durability are important.
| Product Name | Copper /Brass Coil/Strip |
| Material | Copper/Brass |
| Standard | ASTM, AISI, JIS, DIN, GB, EN |
| Grade | C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930, |
| C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200, | |
| C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000, | |
| C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800, | |
| C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200 | |
| T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, | |
| H59,62,H65,H68,H70,H80,H85,H90,H96,C2100,C2200,C2300,C2400,C2600,C2680,C2720, C2800,C3560,C3601,C3713,C3771,C3561,C3710 | |
| Shape | Flat plate |
| Temper | O-H112; T3-T8; T351-T851 |
| Size | thickness 0.1mm~3mm; Width 30-1000mm |
| Surface | Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc |
| Payment terms | T/T,L/C,western union, Paypal |
| Price terms | CFR,FOB,CIF,Ex-work,CNF |
| Application | 1)Further making utensil. |
| 2)Solar reflective film | |
| 3)The appearance of the building | |
| 4)Interior decorating:ceilings,walls,etc. | |
| 5)Furniture cabinets | |
| 6)Elevator decoraction | |
| 7)Signs,nameplate,bags making. | |
| 8)Decorated inside and outside the car | |
| 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. | |
| 10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc. | |
| Package | Standard export seaworthy package or as required. |
| Material | China GB/T | Japan JIS | German DIN | American ASTM | UK EN |
| TU0 | C1011 | -- | C10100 | C110 | |
| TU1 | C1020 | OF-CU | C10200 | C103 | |
| TU2 | C1020 | OF-CU | C10200 | C103 | |
| T1 | C1020 | OF-CU | C10200 | C103 | |
| T2 | C1100 | SE-CU | C11000 | C101 | |
| TP1 | C1201 | SW-CU | C12000 | -- | |
| TP2 | C1220 | SF-CU | C12000 | -- |
| Composition(%) | ||||
| TU1 | Cu | P | O | Other |
| TU2 | 99.97 | 0.002 | less than 0.002 | balance |
| T1 | 99.95 | 0.002 | less than 0.003 | balance |
| T2 | 99.9 | - | - | balance |
| TP1 | 99.9 | 0.004-0.012 | - | balance |
| TP2 | 99.9 | 0.015-0.040 | - | balance |
| C10200 | 99.95 | 0.001-0.005 | - | balance |
| C11000 | 99.9 | - | - | balance |
| C12000 | 99.9 | 0.004-0.012 | - | balance |
| C12200 | 99.9 | 0.015-0.040 | - | balance |
