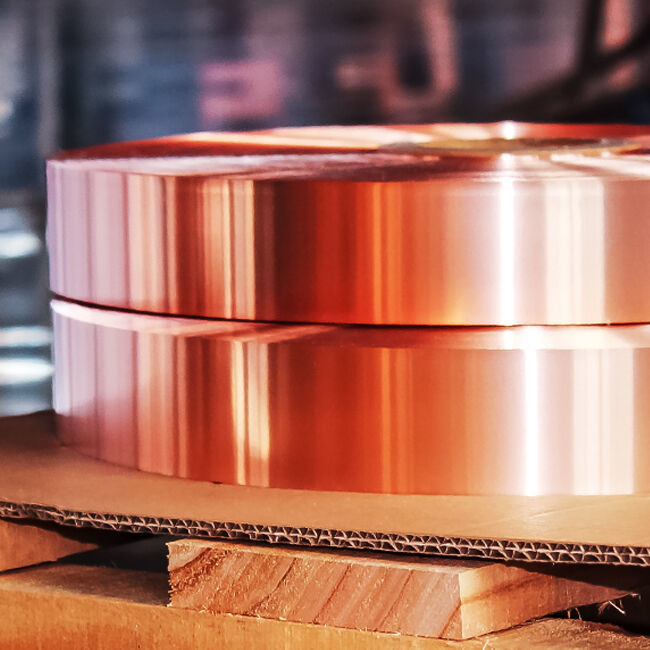

DIN GB EN Copper Coil Roll ASTM Copper Sheet Roll
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Copper Strip |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3~10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Copper Strip | Standard | ASTM, AISI, JIS, DIN, GB, EN |
|---|---|---|---|
| Shape | Strip Coil Roll | Edge | Rounded, Smooth, No Burrs |
| Purity(Cu+Ag) | Greater Than Or Equal 99.9% | Grade | Pure Copper |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching | ||
| High Light | EN Copper Coil Roll,DIN Copper Coil Roll,ASTM Copper Sheet Roll |
||
Product Description
Copper Strip
Copper strip is a flat, thin piece of copper that is typically less than 0.25 inches thick and can range in width from a fraction of an inch to several inches. Copper strip is made from pure copper or copper alloys and is used in a wide range of applications due to its excellent electrical conductivity, thermal conductivity, corrosion resistance, and ductility.
Application of Copper Strip
1. Electrical wiring: Copper strips are commonly used in electrical wiring due to their excellent electrical conductivity and low resistance.
2. Electrical contacts and connectors: Copper strips are used in electrical contacts and connectors due to their excellent conductivity and ability to be easily formed and shaped.
3. Heat exchangers: Copper strips are used in heat exchangers due to their excellent thermal conductivity and corrosion resistance, which allows for efficient heat transfer.
4. Circuit boards: Copper strips are used in the manufacture of printed circuit boards due to their electrical conductivity and ability to be easily etched and shaped.
5. Transformers: Copper strips are used in transformers due to their high conductivity and ability to withstand high temperatures.
6. Roofing and gutters: Copper strips are used in roofing and gutters due to their corrosion resistance and longevity.
7. Industrial machinery: Copper strips are used in a variety of industrial machinery applications, such as motors, generators, and pumps, due to their excellent electrical and thermal conductivity.
| Product Name | Copper /Brass Coil/Strip |
| Material | Copper/Brass |
| Standard | ASTM, AISI, JIS, DIN, GB, EN |
| Grade | C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930, |
| C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200, | |
| C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000, | |
| C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800, | |
| C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200 | |
| T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, | |
| H59,62,H65,H68,H70,H80,H85,H90,H96,C2100,C2200,C2300,C2400,C2600,C2680,C2720, C2800,C3560,C3601,C3713,C3771,C3561,C3710 | |
| Shape | Flat plate |
| Temper | O-H112; T3-T8; T351-T851 |
| Size | thickness 0.1mm~3mm; Width 30-1000mm |
| Surface | Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc |
| Payment terms | T/T,L/C,western union, Paypal |
| Price terms | CFR,FOB,CIF,Ex-work,CNF |
| Application | 1)Further making utensil. |
| 2)Solar reflective film | |
| 3)The appearance of the building | |
| 4)Interior decorating:ceilings,walls,etc. | |
| 5)Furniture cabinets | |
| 6)Elevator decoraction | |
| 7)Signs,nameplate,bags making. | |
| 8)Decorated inside and outside the car | |
| 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. | |
| 10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc. | |
| Package | Standard export seaworthy package or as required. |
| Material | China GB/T | Japan JIS | German DIN | American ASTM | UK EN |
| TU0 | C1011 | -- | C10100 | C110 | |
| TU1 | C1020 | OF-CU | C10200 | C103 | |
| TU2 | C1020 | OF-CU | C10200 | C103 | |
| T1 | C1020 | OF-CU | C10200 | C103 | |
| T2 | C1100 | SE-CU | C11000 | C101 | |
| TP1 | C1201 | SW-CU | C12000 | -- | |
| TP2 | C1220 | SF-CU | C12000 | -- |
| Composition(%) | ||||
| TU1 | Cu | P | O | Other |
| TU2 | 99.97 | 0.002 | less than 0.002 | balance |
| T1 | 99.95 | 0.002 | less than 0.003 | balance |
| T2 | 99.9 | - | - | balance |
| TP1 | 99.9 | 0.004-0.012 | - | balance |
| TP2 | 99.9 | 0.015-0.040 | - | balance |
| C10200 | 99.95 | 0.001-0.005 | - | balance |
| C11000 | 99.9 | - | - | balance |
| C12000 | 99.9 | 0.004-0.012 | - | balance |
| C12200 | 99.9 | 0.015-0.040 | - | balance |
Quality Control
Production Processing
Packing & Delivery
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
A: We provide after-sale service and offer 100% guarantee on our products.
