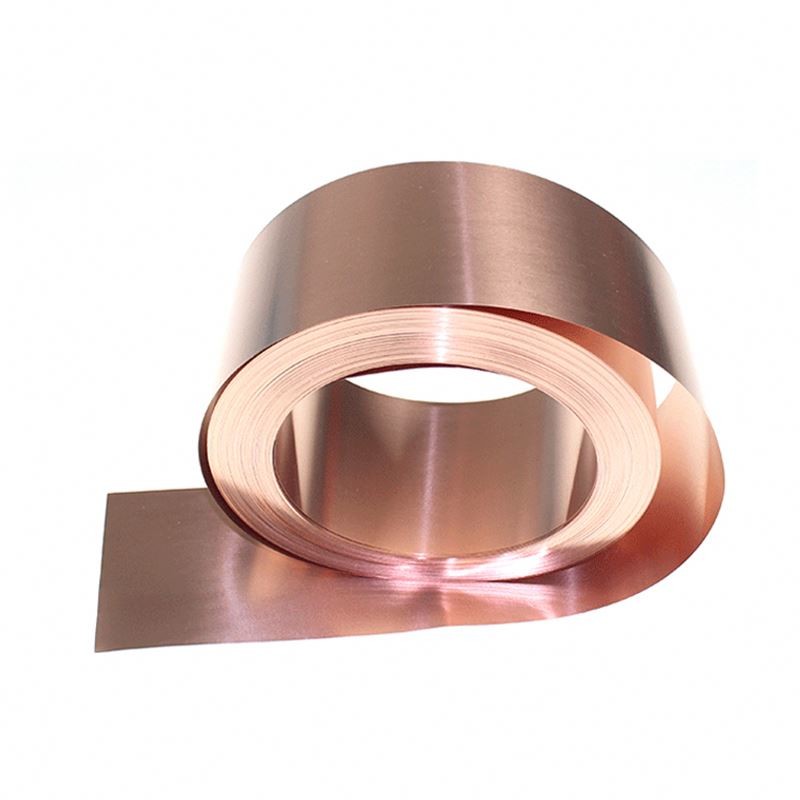

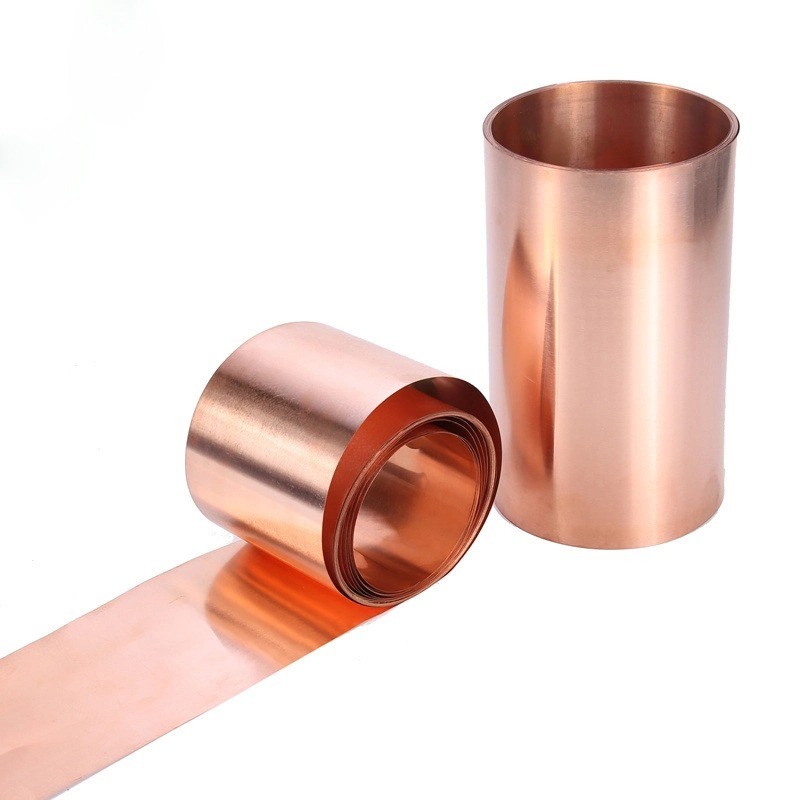

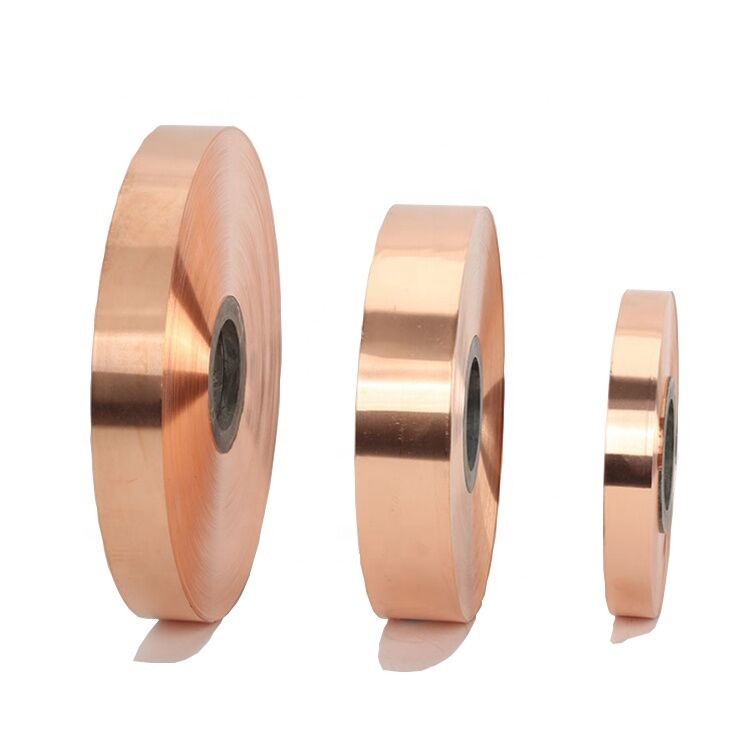

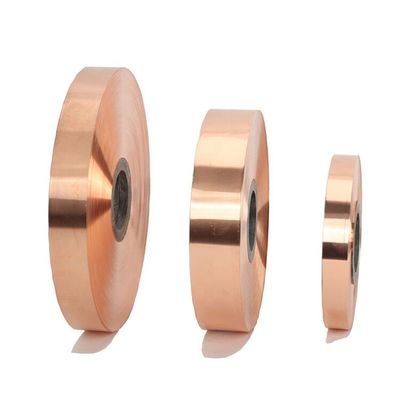

ASTM AISI Copper Strip Roll C2801P C36500 Battery Copper Foil Roll

Place of Origin China
Brand Name SSZG
Certification ISO CE SGS ROHS
Model Number Copper Strip
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package
Delivery Time 3~10 days
Payment Terms L/C, T/T
Supply Ability 2000Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Coil Standard ASTM, AISI, JIS, DIN, GB, EN
Shape Strip Coil Roll Edge Rounded, Smooth, No Burrs
Purity(Cu+Ag) Greater Than Or Equal 99.9% Grade Pure Copper
Processing Service Bending, Welding, Decoiling, Cutting, Punching Material Copper / Brass
Temper O-H112; T3-T8; T351-T851
High Light

ASTM Copper Strip Roll

,

AISI Copper Strip Roll

,

C36500 Battery Copper Foil Roll

Leave a Message
Product Description

Some common applications of copper strip include:



Electrical wiring: Copper strip is used in electrical wiring due to its excellent electrical conductivity and low resistance, which allows electricity to flow easily through the wire.

Electrical contacts and connectors: Copper strip is used in electrical contacts and connectors due to its excellent conductivity and ability to be easily formed and shaped.

Heat exchangers: Copper strip is used in heat exchangers due to its excellent thermal conductivity and corrosion resistance, which allows for efficient heat transfer.

Automotive and industrial applications: Copper strip is used in a variety of automotive and industrial applications, such as radiators, heat sinks, and electrical components, due to its excellent thermal conductivity and strength.

Decorative and architectural applications: Copper strip is used in decorative and architectural applications, such as roofing, gutters, and facades, due to its aesthetic appeal and durability.

Overall, copper strip is a versatile material that can be used in a wide range of applications where electrical conductivity, thermal conductivity, and corrosion resistance are important.


Item Copper Strip / Copper Tape
Standard

JIS H3100-2006 ,ASTM B152M-06,GB/T 2040-2008,ROCT 495-92,EN 1652-98,ASTM

B171M-04,

Material

C12300,C1020P,C10100,C10400,C10700,C10200,T2,C1100P,C10500,M1,CuETP,TP1,

C1201P,
C11000,CuDLP,TP2,C1220P

,C1221P,C1200,C12200,C14200,C23000P,H62,C2801P,C36500

Thickness 0.01mm~20mm
Width 1mm~2500mm
Length Random size and customize or as required
Surface  mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Package Standard export seaworthy or as customers' requirements
Application

Copper coil can be made to do all sorts of deep drawing and bending stress components,such as manufacturing pins

,rivets,gasket,nuts,conduits,the barometer spring,screen,radiator parts, etc

Export to

Ireland,Singapore,Indonesia,Ukraine,Saudi,Arabia,Spain,Canada,USA,Brazil,Thailand,Iraq,
Russia,Holland,Turkey,Kuwait

,Korea,Argentina,India,Egypt,Oman,Malaysia,Peru,Vietnam,Mexico,etc



Material China GB/T Japan JIS German DIN American ASTM UK EN
TU0 C1011 -- C10100 C110
TU1 C1020 OF-CU C10200 C103
TU2 C1020 OF-CU C10200 C103
T1 C1020 OF-CU C10200 C103
T2 C1100 SE-CU C11000 C101
TP1 C1201 SW-CU C12000 --
TP2 C1220 SF-CU C12000 --



Composition(%)
TU1 Cu P O Other
TU2 99.97 0.002 less than 0.002 balance
T1 99.95 0.002 less than 0.003 balance
T2 99.9 - - balance
TP1 99.9 0.004-0.012 - balance
TP2 99.9 0.015-0.040 - balance
C10200 99.95 0.001-0.005 - balance
C11000 99.9 - - balance
C12000 99.9 0.004-0.012 - balance
C12200 99.9 0.015-0.040 - balance

ASTM AISI Copper Strip Roll C2801P C36500 Battery Copper Foil Roll 0ASTM AISI Copper Strip Roll C2801P C36500 Battery Copper Foil Roll 1



ASTM AISI Copper Strip Roll C2801P C36500 Battery Copper Foil Roll 2



Quality Control



ASTM AISI Copper Strip Roll C2801P C36500 Battery Copper Foil Roll 3

Production Processing



ASTM AISI Copper Strip Roll C2801P C36500 Battery Copper Foil Roll 4



Packing & Delivery



ASTM AISI Copper Strip Roll C2801P C36500 Battery Copper Foil Roll 5



ASTM AISI Copper Strip Roll C2801P C36500 Battery Copper Foil Roll 6





FAQ



1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.


2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.


3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available


4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.


5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.


6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.


7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.​
