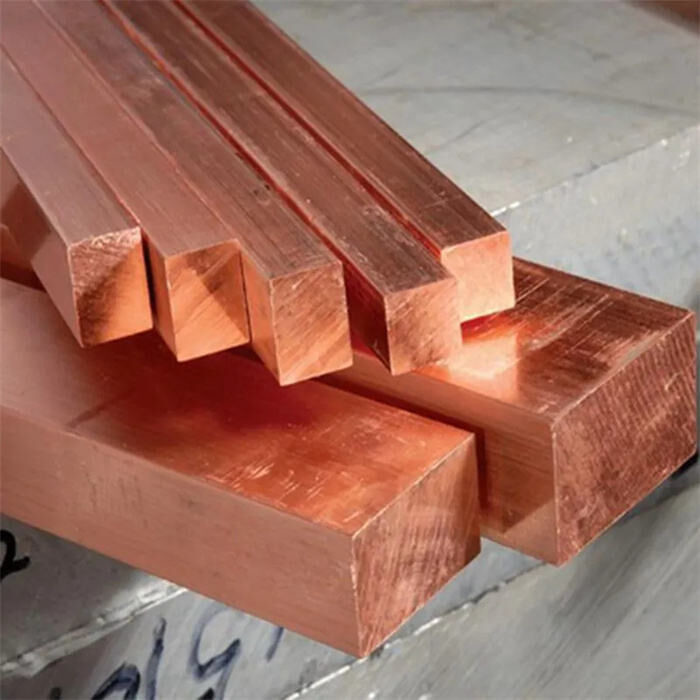

C11000 C1100 Copper Square Bar / Square Brass Rod

  • C11000 C1100 Copper Square Bar / Square Brass Rod
Place of Origin China
Brand Name SSZG
Certification ISO CE SGS ROHS
Model Number Copper Rod
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package
Delivery Time 3~10 days
Payment Terms L/C, T/T
Supply Ability 2000Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Rod Standard ASTM, AISI, JIS, DIN, GB, EN
Shape Square Temper Soft Annealed, Full Hard
Type Copper Bars Hardness O,1/2H,3/4H,H,EH,SH,etc
High Light

C11000 Copper Square Bar

,

C1100 Copper Square Bar

,

ASTM Square Brass Rod
Leave a Message
Product Description

C11000 C1100 Copper Bar / Copper Rod



Product Name Copper Bar
Grade ASTM
C10100,C10200,C10300,C10400,C10500,C10700,C10800,
C10910,C10920,C10930,C10940,C11000,C11300,C11400,
C11500,C11600,C12000,C12200,C12300,C12500,C14200,
C14420,C14500,C14510,C14520,C14530,C14700,C15100,
C15500,C16200,C16500,C17000,C17200,C17300,C17410,
C17450,C17460,C17500,C17510,C18700,C19010,C19025,
C19200,C19210,C19400,C19500,C19600,C19700,etc.
JIS
C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,
C1720,C1990,etc.
EN
Cu-OFE, Cu-HCP, Cu-PHC, Cu-ETP, Cu-DHP, Cu-DLP;
CW009A, CW021A, CW020A, CW004A, CW024A, CW023A
DIN
OF-Cu, SE-Cu, E-Cu58, SF-Cu, SW-Cu.
Temper Soft, 1/4 Hard, 1/2 Hard, Hard, Extra Hard
Size Diameter: ≤ 500mm
Length: Straight ≤ 12000mm



Chemical Requirements
CU+AG (%) SN (%) ZN (%) PB (%) NI (%) FE (%) SB (%) S (%) AS (%) BI (%) O (%)
≥99.90 ≤0.002 ≤0.005 ≤0.005 ≤0.005 ≤0.005 ≤0.002 ≤0.005 ≤0.002 ≤0.001 ≤0.06



Alloy Chemical Composition
QB JIS /ASTM Cu P O Other
T2 JIS C1100 99.9 0.015-0.040 - balance
TU ASTM C10300 99.95 0.001-0.005 - balance
TP1 JIS C1220 99.9 0.004-0.012 - balance



Grade(China) Grade(Japan) Temper Vickers Hardness (HV) Tensile strength(Mpa) Elongation(%)
T2/T3/TP1/TP2 C11000/C1201 M - ≥290 ≥40
C1220.etc. Y4 75-125 325~410 ≥35
  Y2 85-145 340~460 ≥25
  Y 105-175 390~530 ≥13
  T - ≥490 -



C11000 C1100 Copper Square Bar / Square Brass Rod 0C11000 C1100 Copper Square Bar / Square Brass Rod 1

C11000 C1100 Copper Square Bar / Square Brass Rod 2

Quality Control



C11000 C1100 Copper Square Bar / Square Brass Rod 3

Production Processing



C11000 C1100 Copper Square Bar / Square Brass Rod 4



Packing & Delivery



C11000 C1100 Copper Square Bar / Square Brass Rod 5



C11000 C1100 Copper Square Bar / Square Brass Rod 6





FAQ



1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.

2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available

4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.

5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.

6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.

7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.​
