Rectangle Copper Rod Bar C11000 C10200 C27000 C28000

Place of Origin China
Brand Name SSZG
Certification ISO CE SGS ROHS
Model Number Copper Rod
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package
Delivery Time 3~10 days
Payment Terms L/C, T/T
Supply Ability 2000Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Rod Shape Round
Surface Mill,polished,bright,oiled,hair Line,brush,mirror,sand Bla Application Industry, Fireproof Cable
Temper Soft Annealed, Full Hard Type Copper Bars
Alloy Or Not Non-Alloy Grade Copper
High Light

C10200 Rectangle Copper Rod

,

C27000 Rectangle Copper Rod

,

C28000 copper rectangle bar

Leave a Message
Product Description

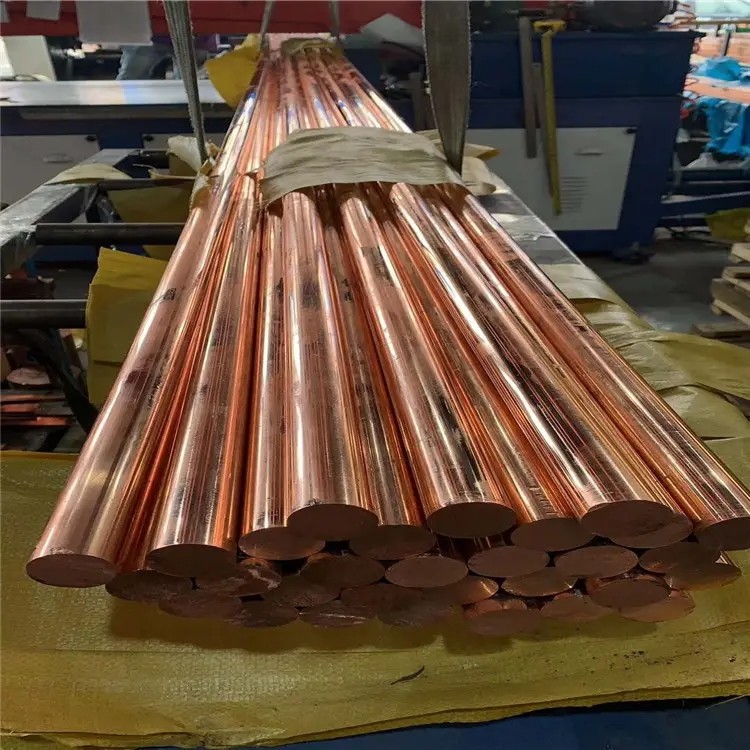

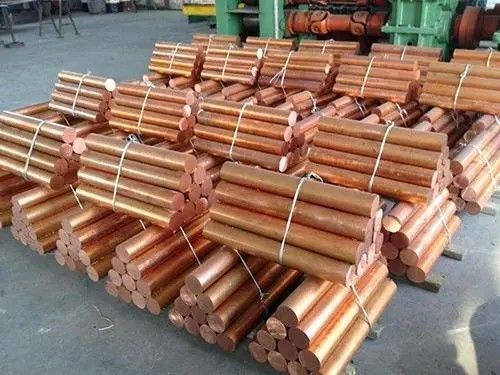

Rectangle Copper Rod Copper Bar C11000 C10200 C27000 C28000



Advantages of Copper Rods


Good Conductivity: Copper is an excellent conductor of electricity, and copper rods can be used for electrical wiring and grounding systems. Copper has a low resistance to electrical current, which means that it can carry electricity efficiently and with minimal energy loss.



Corrosion Resistance: Copper is highly resistant to corrosion and does not rust, making it an ideal material for outdoor applications. Copper rods are often used for water pipes and plumbing systems because they are resistant to corrosion and can withstand high pressure.



Ductility: Copper is a very ductile material, which means that it can be easily shaped and formed without breaking or cracking. This makes it an ideal material for applications that require a high degree of flexibility and durability, such as electrical wiring.



Recyclability: Copper is a highly recyclable material, and copper rods can be melted down and reused to make new products. This makes copper a sustainable choice for many applications.



Thermal Conductivity: Copper is an excellent conductor of heat, and copper rods can be used for heat exchangers and other applications that require efficient heat transfer.



Aesthetics: Copper has a distinctive and attractive appearance, and copper rods are often used in architectural and decorative applications.



Overall, copper rods offer a range of advantages that make them an ideal material for a variety of applications.



Product Name Copper Bar
Grade ASTM
C10100,C10200,C10300,C10400,C10500,C10700,C10800,
C10910,C10920,C10930,C10940,C11000,C11300,C11400,
C11500,C11600,C12000,C12200,C12300,C12500,C14200,
C14420,C14500,C14510,C14520,C14530,C14700,C15100,
C15500,C16200,C16500,C17000,C17200,C17300,C17410,
C17450,C17460,C17500,C17510,C18700,C19010,C19025,
C19200,C19210,C19400,C19500,C19600,C19700,etc.
JIS
C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,
C1720,C1990,etc.
EN
Cu-OFE, Cu-HCP, Cu-PHC, Cu-ETP, Cu-DHP, Cu-DLP;
CW009A, CW021A, CW020A, CW004A, CW024A, CW023A
DIN
OF-Cu, SE-Cu, E-Cu58, SF-Cu, SW-Cu.
Temper Soft, 1/4 Hard, 1/2 Hard, Hard, Extra Hard
Size Diameter: ≤ 500mm
Length: Straight ≤ 12000mm



Chemical Requirements
CU+AG (%) SN (%) ZN (%) PB (%) NI (%) FE (%) SB (%) S (%) AS (%) BI (%) O (%)
≥99.90 ≤0.002 ≤0.005 ≤0.005 ≤0.005 ≤0.005 ≤0.002 ≤0.005 ≤0.002 ≤0.001 ≤0.06



Alloy Chemical Composition
QB JIS /ASTM Cu P O Other
T2 JIS C1100 99.9 0.015-0.040 - balance
TU ASTM C10300 99.95 0.001-0.005 - balance
TP1 JIS C1220 99.9 0.004-0.012 - balance



Grade(China) Grade(Japan) Temper Vickers Hardness (HV) Tensile strength(Mpa) Elongation(%)
T2/T3/TP1/TP2 C11000/C1201 M - ≥290 ≥40
C1220.etc. Y4 75-125 325~410 ≥35
  Y2 85-145 340~460 ≥25
  Y 105-175 390~530 ≥13
  T - ≥490 -



Rectangle Copper Rod Bar C11000 C10200 C27000 C28000 0Rectangle Copper Rod Bar C11000 C10200 C27000 C28000 1Rectangle Copper Rod Bar C11000 C10200 C27000 C28000 2



Rectangle Copper Rod Bar C11000 C10200 C27000 C28000 3

Quality Control



Rectangle Copper Rod Bar C11000 C10200 C27000 C28000 4

Production Processing



Rectangle Copper Rod Bar C11000 C10200 C27000 C28000 5



Packing & Delivery



Rectangle Copper Rod Bar C11000 C10200 C27000 C28000 6



Rectangle Copper Rod Bar C11000 C10200 C27000 C28000 7





FAQ



1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.


2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.


3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available


4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.


5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.


6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.


7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.​
