Smooth Coated Aluminum Coil Roll H114 H194 Temper
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Aluminum Coil |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3-15 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Aluminum Coil | Keyword | Aluminum Coil |
|---|---|---|---|
| Processing Service | Bending, Decoiling, Welding, Punching, Cutting | Application | Vehicle , Aerospace , Fixture |
| Surface | Smooth | Shape | Coil . Sheet |
| High Light | Smooth Aluminum Coil Roll,H114 Aluminum Coil Roll,H194 Coated Aluminum Coil |
||
Product Description
Composition of aluminum coil
Aluminum coils are primarily made up of aluminum, which is a soft, lightweight, and durable metal. The exact composition of aluminum coils can vary depending on the specific application and manufacturing process, but they typically contain high-purity aluminum with small amounts of other elements.
The most common alloy used in aluminum coils is 3003, which contains around 1-1.5% manganese, making it stronger and more corrosion-resistant. Other alloys used in aluminum coils include 5052, 6061, and 7075, which contain small amounts of other elements such as magnesium, copper, zinc, and silicon to improve their strength, durability, and other properties.
In addition to the primary metal, aluminum coils may also contain various coatings, finishes, or treatments to enhance their performance and appearance. For example, they may be coated with a protective layer of paint or anodized to improve their resistance to corrosion and wear. They may also be laminated with other materials, such as plastic or paper, to make them more suitable for specific applications such as packaging.
Application of Aluminum Coil
1. Construction: Aluminum coils are commonly used in construction for roofing, cladding, gutters, and facades. They are also used in structural applications, such as in building frames, doors, and windows.
2. Transportation: Aluminum coils are used in the transportation industry for manufacturing automotive components such as body panels, wheels, and chassis. They are also used in the manufacturing of aircraft components and marine vessels.
3. Packaging: Aluminum coils are commonly used in the packaging industry for producing aluminum cans, foils, and closures. They are also used for laminating with other materials to create packaging products such as pouches and flexible packaging.
4. Electrical: Aluminum coils are used in the electrical industry for producing transformers, motors, and other electrical components due to their high conductivity and low density.
5. Heat transfer: Aluminum coils are commonly used in heat exchangers, radiators, and air conditioning systems due to their high thermal conductivity.
6. Industrial: Aluminum coils are used in various industrial applications such as manufacturing of industrial machinery, equipment, and tools due to their strength and durability.
7. Consumer goods: Aluminum coils are also used in the manufacturing of consumer goods such as furniture, cookware, and decorative items due to their aesthetic appeal, lightweight, and corrosion resistance.
| Product Name | Aluminium coil,Aluminium foil, Aluminium alloy coil, Aluminium alloy roll | |
| Grade | 1000, 2000, 3000, 4000, 5000, 6000 series a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc. | |
| Width | 2mm-2200mm | |
| Thickness | 0.1mm-200mm | |
| Length | As required | |
| Temper | 0-H112,T3-T8, T351-851 | |
| Surface | mill, bright, polished, hair line, brush,sand blast, checkered,embossed, etching,etc | |
| Application |
1) Further making utensil |
|
| Shipment Time | Within 15-20 workdays after receiving deposit or L/C | |
| Export Packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required | |
| MOQ | Sample order can be acceptable. | |
|
1)1000 Series Alloy (Generally called commercial pure aluminum,Al>99.0%)
|
|
| Purity | 1050 1050A 1060 1070 1100 |
| Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/ H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤30mm; Width≤2600mm; Length≤16000mm OR Coil (C) |
| Application | Lid Stock, Industrial Device, Storage, All Kinds of Containers, etc. |
| Feature | Lid Shigh conductivity, good corrosion resistant performance, high latent heat of melting, high-reflectance, well welding property, low strength, and not suitable for heat treatments. |
|
2)3000 Series Alloy (Generally called Al-Mn Alloy, Mn is used as main alloy element)
|
|
| Alloy | 3003 3004 3005 3102 3105 |
| Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/ H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤30mm; Width≤2200mm Length≤12000mm OR Coil (C) |
| Application | Decoration, heat-sink device, external walls, storage, sheets for construction, etc. |
| Feature | Good rust resistance, not suitable for heat treatments, good corrosion resistant performance, well welding property, good plasticity, low strength but suitable for cold working hardening |
|
3)5000 Series Alloy (Generally called Al-Mg Alloy, the Mg is used as main alloy element)
|
|
| Alloy | 5005 5052 5083 5086 5182 5754 5154 5454 5A05 5A06 |
| Temper | O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
| Application | Marine Grade Plate, Ring-Pull Can End Stock, Ring-Pull Stock, Automobile Body Sheets, Automobile Inside Board, The Protective Cover On Engine. |
| Feature | All the advantages of normal aluminium alloy, high tensile strength & yield strength, good corrosion resistant performance, well welding property, well fatigue strength, and suitable for anodic oxidation. |
|
4)6000 Series Alloy (Generally called Al-Mg-Si Alloy, the Mg and Si are used as main alloy elements )
|
|
| Alloy | 6061 6063 6082 |
| Temper | O F, etc. |
| Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
| Application | Automotive, Aluminium For Aviation, Industrial Mould, Mechanical Components, Transport Ship, Semiconductor Equipments, etc |
| Feature | Good corrosion resistant performance, well welding property, good oxidability, easy to spray-finishing, well oxidation coloring, good machinability. |
Production Processing

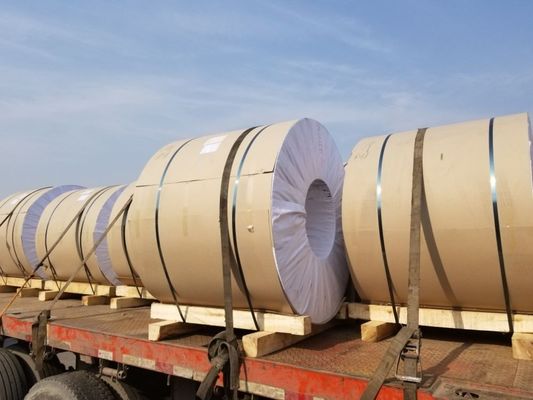

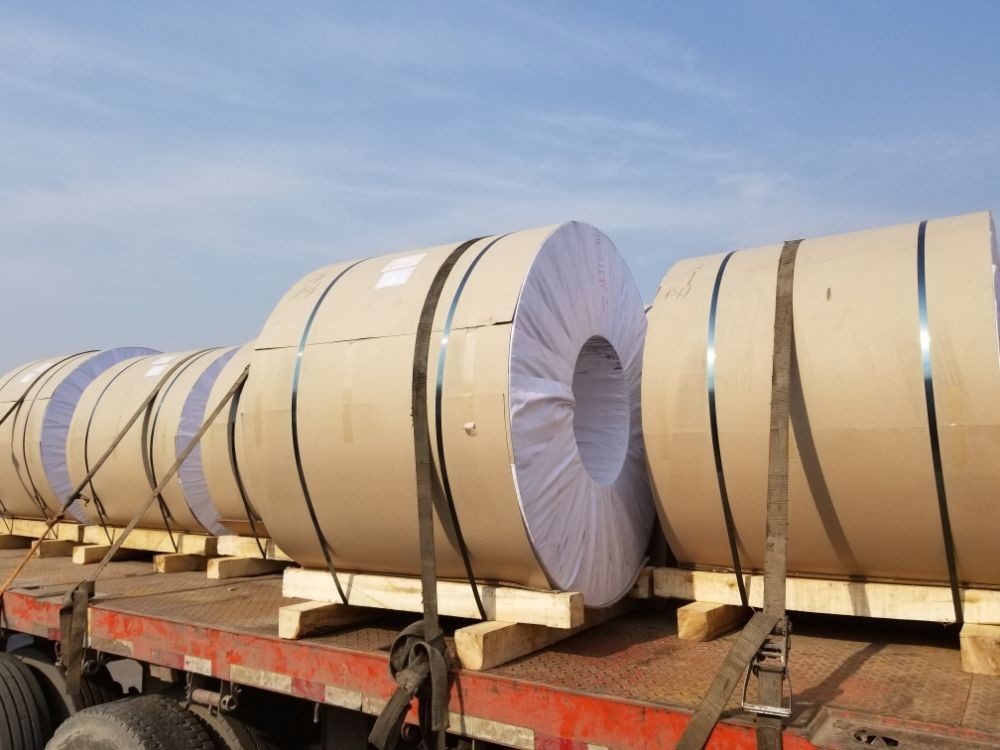

Packing & Delivery
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
A: We provide after-sale service and offer 100% guarantee on our products.
