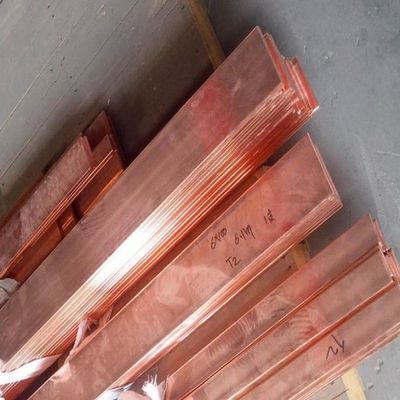

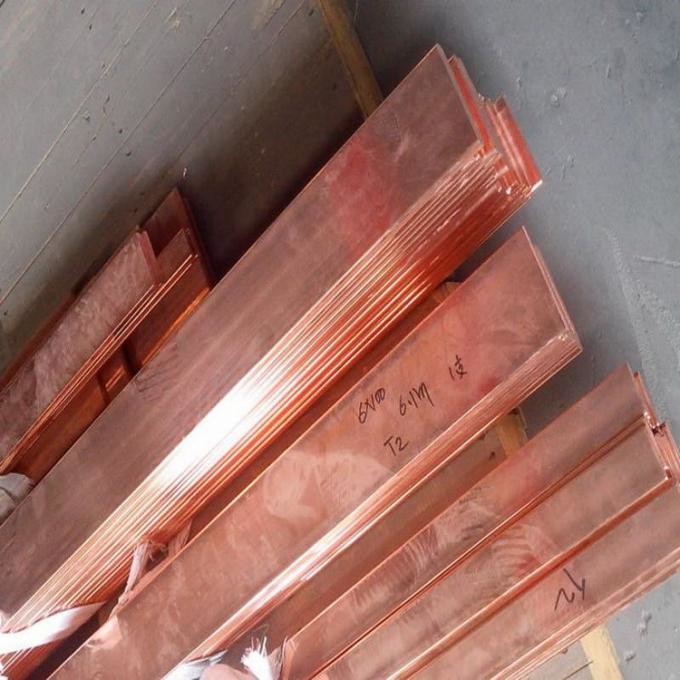

C10100 C10200 Copper Row Polished Copper Flat Busbar
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Copper Flat Bar |
| Minimum Order Quantity | 500KG |
| Price | Negotiable |
| Packaging Details | Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3~10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 Ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Copper Busbar | Type | Copper Row |
|---|---|---|---|
| Standards | ASTM, DIN, GB, JIS, BS, AISI | Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Application | Power Distribution | Material | Cu Min 99.99% |
| High Light | C10100 Copper Row,C10200 Copper Row,Polished Copper Flat Busbar |
||
Product Description
Application Of Copper Flat Bars
1. Electrical grounding and bonding: Copper flat bars are often used as a grounding conductor in electrical systems due to their excellent conductivity and corrosion resistance.
2. Busbars and electrical conductors: Copper flat bars are used as busbars and electrical conductors in switchgear, transformers, and other electrical equipment.
3. Heat exchangers and radiators: Copper flat bars are used in heat exchangers and radiators due to their excellent thermal conductivity and corrosion resistance.
4. Architectural and decorative applications: Copper flat bars are used in architectural and decorative applications, such as roofing, gutters, and facades, due to their aesthetic appeal and durability.
5. Industrial machinery and equipment: Copper flat bars are used in a variety of industrial machinery and equipment, such as pumps, compressors, and valves, due to their corrosion resistance and strength.
6. Plumbing and piping systems: Copper flat bars are used in plumbing and piping systems due to their excellent corrosion resistance and durability.
7. Jewelry making: Copper flat bars are used in jewelry making due to their unique color and ability to be easily shaped and formed.
Overall, copper flat bars are a versatile material that can be used in a wide range of applications where electrical conductivity, thermal conductivity, and corrosion resistance are important.
Application Of Brass Flat Bars
1. Architectural and decorative applications: Brass flat bars are often used in architectural and decorative applications, such as door and window fittings, handrails, and ornamental metalwork, due to their warm color and shiny appearance.
2. Electrical and electronic components: Brass flat bars are used in electrical and electronic components, such as connectors, switches, and terminals, due to their excellent conductivity and durability.
3. Musical instruments: Brass flat bars are used in the construction of musical instruments, such as trumpets, trombones, and horns, due to their unique acoustic properties and ability to be easily shaped and formed.
4. Plumbing and piping systems: Brass flat bars are used in plumbing and piping systems due to their excellent corrosion resistance and durability.
5. Machine parts and hardware: Brass flat bars are used in the construction of machine parts and hardware, such as gears, bearings, and fasteners, due to their strength and durability.
6. Jewelry making: Brass flat bars are used in jewelry making due to their unique color and ability to be easily shaped and formed.
Overall, brass flat bars are a versatile material that can be used in a wide range of applications where corrosion resistance, durability, and aesthetic appeal are important.
| Product Name | copper flat bar |
| Grade | C10100 C10200 C10300 C11000 C12200 C12000 |
| Thickness (mm) | 0.3-200mm, or customized |
| WIDTH | 0.3-160mm, or required |
| Length (mm) | 1-6m or as requested |
| Surface | Polished,bright,oiled,hair line,brush,mirror,or as required |
| Shape | Round, Square, Flat, Hexagon, Oval |
| Hardness | O, 1/4 Hard, 1/2Hard, 3/4 Hard, H, EH |
| Payment terms | L/C T/T (30%DEPOSIT) |
| Delivery time | Within 7-10 Working Days |
| Material | |
| Copper | GB |
| T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, | |
| ASTM | |
| C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, | |
| C10930,C10940,C11000,C11300,C11400,C11500,C11600,C12000,C12200, | |
| C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C14700, | |
| C15100,C15500,C16200,C16500,C17000,C17200,C17300,C17410,C17450, | |
| C17460,C17500,C17510,C18700,C19010,C19025,C19200,C19210,C19400, | |
| C19500,C19600,C19700, | |
| JIS | |
| C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,C1720,C1990, | |
| Brass | GB |
| H96,H90,H85,H80,H70,H68,H65,H63,H62,H59, | |
| ASTM | |
| C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000, | |
| C27200,C27400,C28000,C31400,C31600,C32000,C33200,C33300,C33500, | |
| C34000,C34200,C34500,C35000,C35300,C35600C36000,C36500,C37000, | |
| C37700,C38000,C38500,C40500,C40800,C40810,C40850,C40860,C41100, | |
| C41300,C41500,C42200,C42500,C42520,C42600,C43000,C43400,C44300, | |
| C44400,C44500,C46200,C46400,C46500,C47940,C48200,C48500,C50500, | |
| C50580,C50700,C51000,C51080,C51100,C51180,C51900,C51980,C52100, | |
| C52180,C52400,C52480,C53400,C54400,C60600,C60800,C61300,C61400, | |
| C61900,C62300,C62400,C63000,C63020,C63200,C64200,C64210,C64700, | |
| C65100,C65400,C65500,C66100,C66400,C66410,C66430,C66700,C67000, | |
| C67500,C67600,C68700,C68800,C69100,C69400,C69430,C69700,C69710, | |
| C70250,C70260,C70265,C70400,C70600,C70620,C71000,C71500,C71520, | |
| C71640,C72200,C72400,C72500,C72650,C72700,C72900,C73500,C74000, | |
| C74500,C75200,C75700,C76200,C76400,C77000,C77400,C79200, | |
| JIS | |
| C2051,C2100,C2200,C2300,C2400,C2600,C2680,C2700,C2720,C2800, | |
| C2801,C3501,C3560,C3561,C3601,C3602,C3603,C3604,C3605,C3710, | |
| C3712,C3713,C3771,C4250,C4430,C4621,C4622,C4640,C4641,C5101, | |
| C5102,C5111,C5191,C5210,C5212,C5341,C5441,C6140,C6161,C6191, | |
| C6241,C6280,C6301,C6561,C6711,C6712,C6782,C6783,C6870,C6871, | |
| C7060,C7150,C7100,C7164,C7351,C7451,C7521,C7541,C7701,C7941 | |
| Brass Flat Bar Alternate name | Brass plate synonyms |
| product specifications | Area | Copper thickness | Size | Weight | Weight | Weight |
| (mm²) | (mm) | (length) | (kg/m) | (kg/3m) | (kg/6m) | |
| XZH-25×4 | 100 | ≥0.25 | 3m or 6m | 0.796 | 2.387 | 4.774 |
| XZH-27×7 | 189 | ≥0.25 | 3m or 6m | 1.493 | 4.478 | 8.956 |
| XZH-30×3 | 90 | ≥0.25 | 3m or 6m | 0.72 | 2.16 | 4.319 |
| XZH-30×4 | 120 | ≥0.25 | 3m or 6m | 0.954 | 2.863 | 5.727 |
| XZH-40×4 | 160 | ≥0.25 | 3m or 6m | 1.272 | 3.816 | 7.632 |
| XZH-40×5 | 200 | ≥0.25 | 3m or 6m | 1.584 | 4.753 | 9.507 |
| XZH-50×5 | 250 | ≥0.25 | 3m or 6m | 1.98 | 5.94 | 11.88 |
| XZH-50×6 | 300 | ≥0.25 | 3m or 6m | 2.371 | 7.112 | 14.223 |
| XZH-60×6 | 360 | ≥0.25 | 3m or 6m | 2.844 | 8.532 | 17.064 |
| XZH-60×8 | 480 | ≥0.25 | 3m or 6m | 3.781 | 11.343 | 22.687 |
| XZH-80×8 | 640 | ≥0.25 | 3m or 6m | 5.04 | 15.12 | 30.241 |
| XZH-25×4 | 100 | ≥0.40 | 3m or 6m | 0.805 | 2.414 | 4.829 |
| XZH-27×7 | 189 | ≥0.40 | 3m or 6m | 1.503 | 4.51 | 9.02 |
| XZH-30×3 | 90 | ≥0.40 | 3m or 6m | 0.73 | 2.191 | 4.382 |
| XZH-30×4 | 120 | ≥0.40 | 3m or 6m | 0.965 | 2.896 | 5.791 |
| XZH-40×4 | 160 | ≥0.40 | 3m or 6m | 1.286 | 3.858 | 7.716 |
| XZH-40×5 | 200 | ≥0.40 | 3m or 6m | 1.599 | 4.797 | 9.593 |
| XZH-50×5 | 250 | ≥0.40 | 3m or 6m | 1.998 | 5.993 | 11.986 |
| European standard | DIN standard (former) | ASTM | Typical properties/application | Manufacturing standard | |||||||||||||
| Cu-ETP | CW004A | E-Cu 58 | 2.0065 | C11000 | standard alloy for electrical components, main appli- | DIN EN 13599 | |||||||||||
| E-Cu 57 | 2.0060 | cation in switchgear construction | DIN EN 1652 | ||||||||||||||
| Cu-HCP Cu-PHC | CW021A CW020A | SE-Cu | 2.0070 | C10300 | hydrogen-resistant, very high conductivity, easy to weld | DIN EN 13599 | |||||||||||
| Cu-OF | CW008A | OF-Cu | 2.0040 | C10200 | hydrogen-resistant, very high conductivity, very easy to weld | DIN EN 13599 | |||||||||||
| Cu-OFE | CW009A | C10100 | high purity, Cu 99.99% fur vacuum switching systems, targets | DIN EN 13604 | |||||||||||||
| Cu-DHP | CW024A | SF-Cu | 2.0090 | C12200 | very easy to weld, without particular conductivity requirements | DIN EN 1652 DIN EN 1653 AD-2000W6/2 |
|||||||||||
| CuAg0,10P | CW016A | CuAg0,1P | 2.1191 | C10700 | mould plates, commutator rings, electrodes | DIN EN 13599 | |||||||||||
| CuCrZr | CW106 | CuCrZr | 2.1293 | C18150 | mould plates, welding equipment, furnace and mould engineering, heavy current engineering | DIN 17670 | |||||||||||
| CuNi2Si | CW111C | CuNi2Si | 2.0855 | C18000 | mould engineering, machine parts, die casting equipment | by arrangement | |||||||||||
|
Products can be supplied by arrangement in compliance with other international standards such as BS, JIS and GOST.
|
|||||||||||||||||
Quality Control
Production Processing
Packing & Delivery
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
A: We provide after-sale service and offer 100% guarantee on our products.
