Bending Welding Decoiling Copper Row ASTM DIN Copper Flat Bar

Place of Origin China
Brand Name SSZG
Certification ISO CE SGS ROHS
Model Number Copper Flat Bar
Minimum Order Quantity 500KG
Price Negotiable
Packaging Details Standard Export Seaworthy Package, or customized package
Delivery Time 3~10 days
Payment Terms L/C, T/T
Supply Ability 500 Ton/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Row Type Copper Busbar
Standards ASTM, DIN, GB, JIS, BS, AISI Grade Pure Copper
Application Power Distribution Material Cu Min 99.99%
High Light

Welding Copper Row

,

Decoiling Copper Row

,

ASTM Copper Flat Bar

Leave a Message
Product Description
Copper Row

Application

1) Further making utensil.

2) Solar reflective film

3) The appearance of the building

4) Interior decorating:ceilings,walls,etc.

5) Furniture cabinets

6) Elevator decoraction

7) Signs,nameplate,bags making.

8) Decorated inside and outside the car

9) Household appliances:refrigerators,microwave ovens,audio equipment,etc.

10) The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc.



Product Name copper flat bar
Grade C10100 C10200 C10300 C11000 C12200 C12000
Thickness (mm) 0.3-200mm, or customized
WIDTH 0.3-160mm, or required
Length (mm) 1-6m or as requested
Surface Polished,bright,oiled,hair line,brush,mirror,or as required
Shape Round, Square, Flat, Hexagon, Oval
Hardness O, 1/4 Hard, 1/2Hard, 3/4 Hard, H, EH
Payment terms L/C T/T (30%DEPOSIT)
Delivery time Within 7-10 Working Days
Material
Copper GB
T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,

ASTM
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
C10930,C10940,C11000,C11300,C11400,C11500,C11600,C12000,C12200,
C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C14700,
C15100,C15500,C16200,C16500,C17000,C17200,C17300,C17410,C17450,
C17460,C17500,C17510,C18700,C19010,C19025,C19200,C19210,C19400,
C19500,C19600,C19700,

JIS
C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,C1720,C1990,
Brass GB
H96,H90,H85,H80,H70,H68,H65,H63,H62,H59,

ASTM
C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000,
C27200,C27400,C28000,C31400,C31600,C32000,C33200,C33300,C33500,
C34000,C34200,C34500,C35000,C35300,C35600C36000,C36500,C37000,
C37700,C38000,C38500,C40500,C40800,C40810,C40850,C40860,C41100,
C41300,C41500,C42200,C42500,C42520,C42600,C43000,C43400,C44300,
C44400,C44500,C46200,C46400,C46500,C47940,C48200,C48500,C50500,
C50580,C50700,C51000,C51080,C51100,C51180,C51900,C51980,C52100,
C52180,C52400,C52480,C53400,C54400,C60600,C60800,C61300,C61400,
C61900,C62300,C62400,C63000,C63020,C63200,C64200,C64210,C64700,
C65100,C65400,C65500,C66100,C66400,C66410,C66430,C66700,C67000,
C67500,C67600,C68700,C68800,C69100,C69400,C69430,C69700,C69710,
C70250,C70260,C70265,C70400,C70600,C70620,C71000,C71500,C71520,
C71640,C72200,C72400,C72500,C72650,C72700,C72900,C73500,C74000,
C74500,C75200,C75700,C76200,C76400,C77000,C77400,C79200,

JIS
C2051,C2100,C2200,C2300,C2400,C2600,C2680,C2700,C2720,C2800,
C2801,C3501,C3560,C3561,C3601,C3602,C3603,C3604,C3605,C3710,
C3712,C3713,C3771,C4250,C4430,C4621,C4622,C4640,C4641,C5101,
C5102,C5111,C5191,C5210,C5212,C5341,C5441,C6140,C6161,C6191,
C6241,C6280,C6301,C6561,C6711,C6712,C6782,C6783,C6870,C6871,
C7060,C7150,C7100,C7164,C7351,C7451,C7521,C7541,C7701,C7941
Brass Flat Bar Alternate name Brass plate synonyms



product specifications Area Copper thickness Size Weight Weight Weight
(mm²) (mm) (length) (kg/m) (kg/3m) (kg/6m)
XZH-25×4 100 ≥0.25 3m or 6m 0.796 2.387 4.774
XZH-27×7 189 ≥0.25 3m or 6m 1.493 4.478 8.956
XZH-30×3 90 ≥0.25 3m or 6m 0.72 2.16 4.319
XZH-30×4 120 ≥0.25 3m or 6m 0.954 2.863 5.727
XZH-40×4 160 ≥0.25 3m or 6m 1.272 3.816 7.632
XZH-40×5 200 ≥0.25 3m or 6m 1.584 4.753 9.507
XZH-50×5 250 ≥0.25 3m or 6m 1.98 5.94 11.88
XZH-50×6 300 ≥0.25 3m or 6m 2.371 7.112 14.223
XZH-60×6 360 ≥0.25 3m or 6m 2.844 8.532 17.064
XZH-60×8 480 ≥0.25 3m or 6m 3.781 11.343 22.687
XZH-80×8 640 ≥0.25 3m or 6m 5.04 15.12 30.241
XZH-25×4 100 ≥0.40 3m or 6m 0.805 2.414 4.829
XZH-27×7 189 ≥0.40 3m or 6m 1.503 4.51 9.02
XZH-30×3 90 ≥0.40 3m or 6m 0.73 2.191 4.382
XZH-30×4 120 ≥0.40 3m or 6m 0.965 2.896 5.791
XZH-40×4 160 ≥0.40 3m or 6m 1.286 3.858 7.716
XZH-40×5 200 ≥0.40 3m or 6m 1.599 4.797 9.593
XZH-50×5 250 ≥0.40 3m or 6m 1.998 5.993 11.986



Surface Finish Definition Application
2B Those finished, after cold rolling, by heat treatment, picking or other equivalent treatment and lastly by cold rolling to given appropriate luster. Medical equipment, Food industry,Construction material, Kitchen utensils.
BA Those processed with bright heat treament after cold rolling. Kitchen utensils, Electric equipment, Building construction.
NO.3 Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. Kitchen utensils, Building construction.
NO.4 Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. Kitchen utensils, Building construction, Medical equipment.
HL Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. Building construction.
NO.1 The surface finished by heat treament and picking or processes corresponding there to after hot rolling. Chemical tank, pipe.



European standard DIN standard (former) ASTM Typical properties/application Manufacturing standard
Cu-ETP CW004A E-Cu 58 2.0065 C11000 standard alloy for electrical components, main appli- DIN EN 13599
    E-Cu 57 2.0060   cation in switchgear construction DIN EN 1652
Cu-HCP Cu-PHC CW021A CW020A SE-Cu 2.0070 C10300 hydrogen-resistant, very high conductivity, easy to weld DIN EN 13599
Cu-OF CW008A OF-Cu 2.0040 C10200 hydrogen-resistant, very high conductivity, very easy to weld DIN EN 13599
Cu-OFE CW009A     C10100 high purity, Cu 99.99% fur vacuum switching systems, targets DIN EN 13604
Cu-DHP CW024A SF-Cu 2.0090 C12200 very easy to weld, without particular conductivity requirements DIN EN 1652
DIN EN 1653 AD-2000W6/2
CuAg0,10P CW016A CuAg0,1P 2.1191 C10700 mould plates, commutator rings, electrodes DIN EN 13599
CuCrZr CW106 CuCrZr 2.1293 C18150 mould plates, welding equipment, furnace and mould engineering, heavy current engineering DIN 17670
CuNi2Si CW111C CuNi2Si 2.0855 C18000 mould engineering, machine parts, die casting equipment by arrangement



Products can be supplied by arrangement in compliance with other international standards such as BS, JIS and GOST.

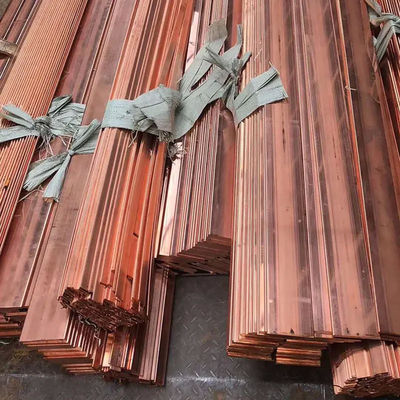

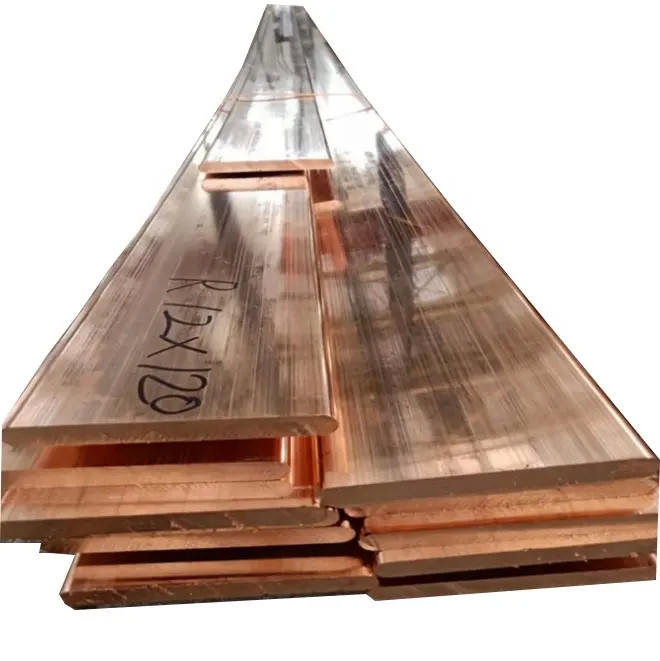

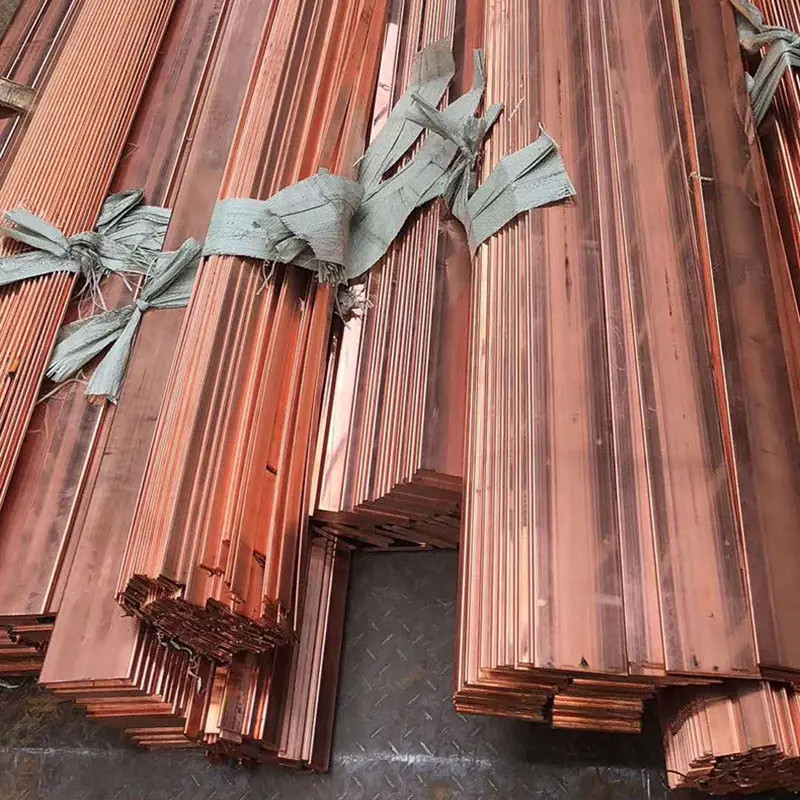

Bending Welding Decoiling Copper Row ASTM DIN Copper Flat Bar 0Bending Welding Decoiling Copper Row ASTM DIN Copper Flat Bar 1Bending Welding Decoiling Copper Row ASTM DIN Copper Flat Bar 2

Quality Control



Bending Welding Decoiling Copper Row ASTM DIN Copper Flat Bar 3

Production Processing



Bending Welding Decoiling Copper Row ASTM DIN Copper Flat Bar 4



Packing & Delivery



Bending Welding Decoiling Copper Row ASTM DIN Copper Flat Bar 5



Bending Welding Decoiling Copper Row ASTM DIN Copper Flat Bar 6





FAQ



1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.


2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.


3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available


4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.


5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.


6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.


7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.​
