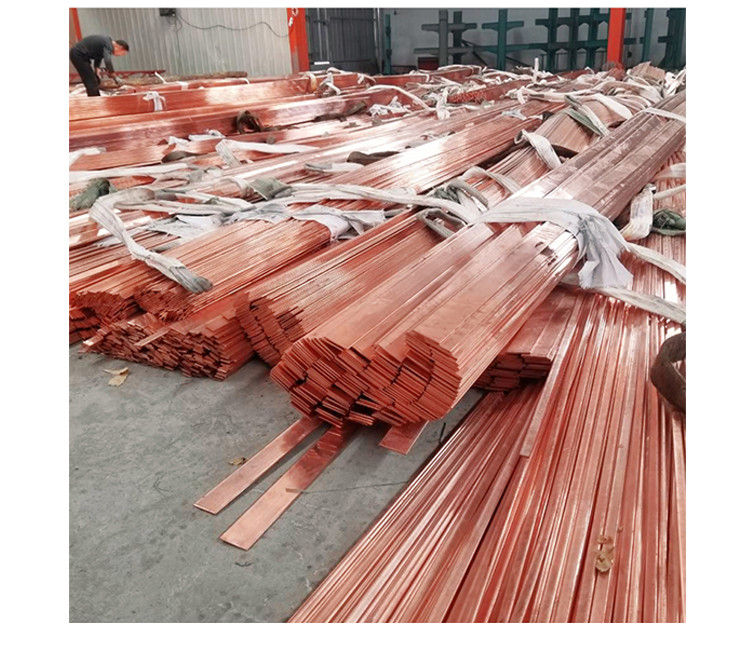

C10300 C10400 Copper Row ASTM DIN Flat Bus Bar
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Copper Flat Bar |
| Minimum Order Quantity | 500KG |
| Price | Negotiable |
| Packaging Details | Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3~10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 Ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Copper Busbar | Type | Copper Flat Bar |
|---|---|---|---|
| Usage | Electronic Component | Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Material | C11000 C10200 C12000 C12200 | Application | Power Distribution |
| High Light | C10300 Copper Row,C10400 Copper Row,ASTM Flat Bus Bar |
||
Product Description
Advantages Of Copper Flat Bars
1. Excellent electrical conductivity: Copper has the highest electrical conductivity of all non-precious metals, making it ideal for use in electrical and electronic applications.
2. Thermal conductivity: Copper has excellent thermal conductivity, making it ideal for use in heat exchangers, radiators, and other applications where heat transfer is important.
3. Corrosion resistance: Copper is highly resistant to corrosion and is often used in harsh environments where other metals would quickly degrade.
4. Ductility: Copper is a highly ductile material, which means it can be easily shaped and formed without cracking or breaking.
5. Aesthetic appeal: Copper has a warm, reddish-brown color that makes it a popular choice for decorative applications.
6. Durability: Copper is a strong and durable material that can withstand heavy use and wear.
7. Recyclability: Copper is a highly recyclable material that can be reused and repurposed, making it an environmentally friendly choice.
Overall, copper flat bars offer a combination of excellent electrical and thermal conductivity, corrosion resistance, ductility, and durability, making them a versatile material for a wide range of applications.
Advantages Of Brass Flat Bars
1. Corrosion resistance: Brass is highly resistant to corrosion and is often used in harsh environments where other metals would quickly degrade. This makes it ideal for use in plumbing and marine applications.
2. Aesthetic appeal: Brass has a warm, golden color and a shiny surface that makes it popular in decorative and architectural applications. It can be polished to a high shine or given a patina to create an antique look.
3. Durability: Brass is a strong and durable material that can withstand heavy use and wear. It is often used in hardware and machine parts.
4. Machinability: Brass is easy to machine and work with, making it a popular choice for manufacturers and fabricators.
5. Electrical conductivity: Brass has good electrical conductivity, making it a preferred material for electrical and electronic components.
6. Low friction: Brass has a low coefficient of friction, which makes it ideal for use in bearings and other applications where smooth movement is required.
7. Non-magnetic: Brass is not magnetic, which makes it ideal for use in sensitive electronic equipment where magnetic interference can cause problems.
Overall, brass flat bars offer a combination of strength, durability, and aesthetic appeal that makes them a versatile material for a wide range of applications.
| Product Name | copper flat bar |
| Grade | C10100 C10200 C10300 C11000 C12200 C12000 |
| Thickness (mm) | 0.3-200mm, or customized |
| WIDTH | 0.3-160mm, or required |
| Length (mm) | 1-6m or as requested |
| Surface | Polished,bright,oiled,hair line,brush,mirror,or as required |
| Shape | Round, Square, Flat, Hexagon, Oval |
| Hardness | O, 1/4 Hard, 1/2Hard, 3/4 Hard, H, EH |
| Payment terms | L/C T/T (30%DEPOSIT) |
| Delivery time | Within 7-10 Working Days |
| Material | |
| Copper | GB |
| T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, | |
| ASTM | |
| C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, | |
| C10930,C10940,C11000,C11300,C11400,C11500,C11600,C12000,C12200, | |
| C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C14700, | |
| C15100,C15500,C16200,C16500,C17000,C17200,C17300,C17410,C17450, | |
| C17460,C17500,C17510,C18700,C19010,C19025,C19200,C19210,C19400, | |
| C19500,C19600,C19700, | |
| JIS | |
| C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,C1720,C1990, | |
| Brass | GB |
| H96,H90,H85,H80,H70,H68,H65,H63,H62,H59, | |
| ASTM | |
| C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000, | |
| C27200,C27400,C28000,C31400,C31600,C32000,C33200,C33300,C33500, | |
| C34000,C34200,C34500,C35000,C35300,C35600C36000,C36500,C37000, | |
| C37700,C38000,C38500,C40500,C40800,C40810,C40850,C40860,C41100, | |
| C41300,C41500,C42200,C42500,C42520,C42600,C43000,C43400,C44300, | |
| C44400,C44500,C46200,C46400,C46500,C47940,C48200,C48500,C50500, | |
| C50580,C50700,C51000,C51080,C51100,C51180,C51900,C51980,C52100, | |
| C52180,C52400,C52480,C53400,C54400,C60600,C60800,C61300,C61400, | |
| C61900,C62300,C62400,C63000,C63020,C63200,C64200,C64210,C64700, | |
| C65100,C65400,C65500,C66100,C66400,C66410,C66430,C66700,C67000, | |
| C67500,C67600,C68700,C68800,C69100,C69400,C69430,C69700,C69710, | |
| C70250,C70260,C70265,C70400,C70600,C70620,C71000,C71500,C71520, | |
| C71640,C72200,C72400,C72500,C72650,C72700,C72900,C73500,C74000, | |
| C74500,C75200,C75700,C76200,C76400,C77000,C77400,C79200, | |
| JIS | |
| C2051,C2100,C2200,C2300,C2400,C2600,C2680,C2700,C2720,C2800, | |
| C2801,C3501,C3560,C3561,C3601,C3602,C3603,C3604,C3605,C3710, | |
| C3712,C3713,C3771,C4250,C4430,C4621,C4622,C4640,C4641,C5101, | |
| C5102,C5111,C5191,C5210,C5212,C5341,C5441,C6140,C6161,C6191, | |
| C6241,C6280,C6301,C6561,C6711,C6712,C6782,C6783,C6870,C6871, | |
| C7060,C7150,C7100,C7164,C7351,C7451,C7521,C7541,C7701,C7941 | |
| Brass Flat Bar Alternate name | Brass plate synonyms |
| Comparison table of national brass grades and standards | ||||||
China |
Germany |
European |
|
lnternational |
the US |
Japan |
GB |
DIN |
EN |
|
ISO |
UNS |
JIS |
| H96 | CuZnS | CuZnS | CWS00L | CuZnS | 21000 | 2100 |
| H90 | CuZn10 | CuZn10 | CW501L | CuZn10 | 22000 | 2200 |
| H85 | CuZn15 | CuZn15 | CW502L | CuZn15 | 23000 | 2300 |
| H80 | CuZn20 | CuZn20 | CW503L | CuZn20 | 24000 | 2400 |
| H70 | CuZn30 | CuZn30 | CWS0SL | CuZn30 | 26000 | 2600 |
| H68 | CuZn33 | CuZn33 | CW506L | CuZn35 | 26800 | 2680 |
| H65 | CuZn36 | CuZn36 | CWS07L | CuZn35 | 27000 | 2700 |
| H63 | CuZn37 | CuZn37 | CWS08L | CuZn37 | 27200 | 2720 |
| HPb63-3 | CuZn36Pb1.5 | CuZn35Pb1 | CW600N | CuZn35Pb1 | 34000 | 3501 |
| HPb63-3 | CuZn36Pb1.5 | CuZn35Pb2 | CW601N | CuZn34Pb2 | 34200 | - |
| H62 | CuZn40 | CuZn40 | CWS09N | CuZn40 | 28000 | 3712 |
| H60 | CuZn38Pb1.5 | CuZn38Pb2 | CW608N | CuZn37Pb2 | 35000 | - |
| HPb63-3 | CuZn36Pb3 | CuZn36Pb3 | CW603N | CuZn36Pb3 | 36000 | 3601 |
| HPb59-1 | CuZn39Pb2 | CuZn39Pb2 | CW612N | CuZn38Pb2 | 37700 | 3771 |
| - | CuZn40Pb2 | CuZn40Pb2 | CW617N | CuZn40Pb2 | 38000 | 3771 |
| - | CuZn28Sn1 | uZn28Sn1As | CW706R | CuZn28Sn1 | 68800 | 4430 |
| - - |
CuZn31Si1 CuZn20Al2 |
CuZn31Si1 CuZn20Al2 |
CW708R CW702R |
CuZn31Si1 CuZn20Al2 |
(44300 (68700 |
- (6870 |
| product specifications | Area | Copper thickness | Size | Weight | Weight | Weight |
| (mm²) | (mm) | (length) | (kg/m) | (kg/3m) | (kg/6m) | |
| XZH-25×4 | 100 | ≥0.25 | 3m or 6m | 0.796 | 2.387 | 4.774 |
| XZH-27×7 | 189 | ≥0.25 | 3m or 6m | 1.493 | 4.478 | 8.956 |
| XZH-30×3 | 90 | ≥0.25 | 3m or 6m | 0.72 | 2.16 | 4.319 |
| XZH-30×4 | 120 | ≥0.25 | 3m or 6m | 0.954 | 2.863 | 5.727 |
| XZH-40×4 | 160 | ≥0.25 | 3m or 6m | 1.272 | 3.816 | 7.632 |
| XZH-40×5 | 200 | ≥0.25 | 3m or 6m | 1.584 | 4.753 | 9.507 |
| XZH-50×5 | 250 | ≥0.25 | 3m or 6m | 1.98 | 5.94 | 11.88 |
| XZH-50×6 | 300 | ≥0.25 | 3m or 6m | 2.371 | 7.112 | 14.223 |
| XZH-60×6 | 360 | ≥0.25 | 3m or 6m | 2.844 | 8.532 | 17.064 |
| XZH-60×8 | 480 | ≥0.25 | 3m or 6m | 3.781 | 11.343 | 22.687 |
| XZH-80×8 | 640 | ≥0.25 | 3m or 6m | 5.04 | 15.12 | 30.241 |
| XZH-25×4 | 100 | ≥0.40 | 3m or 6m | 0.805 | 2.414 | 4.829 |
| XZH-27×7 | 189 | ≥0.40 | 3m or 6m | 1.503 | 4.51 | 9.02 |
| XZH-30×3 | 90 | ≥0.40 | 3m or 6m | 0.73 | 2.191 | 4.382 |
| XZH-30×4 | 120 | ≥0.40 | 3m or 6m | 0.965 | 2.896 | 5.791 |
| XZH-40×4 | 160 | ≥0.40 | 3m or 6m | 1.286 | 3.858 | 7.716 |
| XZH-40×5 | 200 | ≥0.40 | 3m or 6m | 1.599 | 4.797 | 9.593 |
| XZH-50×5 | 250 | ≥0.40 | 3m or 6m | 1.998 | 5.993 | 11.986 |
| Surface Finish | Definition | Application |
| 2B | Those finished, after cold rolling, by heat treatment, picking or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry,Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treament after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building construction. |
| NO.1 | The surface finished by heat treament and picking or processes corresponding there to after hot rolling. | Chemical tank, pipe. |
| European standard | DIN standard (former) | ASTM | Typical properties/application | Manufacturing standard | |||||||||||||
| Cu-ETP | CW004A | E-Cu 58 | 2.0065 | C11000 | standard alloy for electrical components, main appli- | DIN EN 13599 | |||||||||||
| E-Cu 57 | 2.0060 | cation in switchgear construction | DIN EN 1652 | ||||||||||||||
| Cu-HCP Cu-PHC | CW021A CW020A | SE-Cu | 2.0070 | C10300 | hydrogen-resistant, very high conductivity, easy to weld | DIN EN 13599 | |||||||||||
| Cu-OF | CW008A | OF-Cu | 2.0040 | C10200 | hydrogen-resistant, very high conductivity, very easy to weld | DIN EN 13599 | |||||||||||
| Cu-OFE | CW009A | C10100 | high purity, Cu 99.99% fur vacuum switching systems, targets | DIN EN 13604 | |||||||||||||
| Cu-DHP | CW024A | SF-Cu | 2.0090 | C12200 | very easy to weld, without particular conductivity requirements | DIN EN 1652 DIN EN 1653 AD-2000W6/2 |
|||||||||||
| CuAg0,10P | CW016A | CuAg0,1P | 2.1191 | C10700 | mould plates, commutator rings, electrodes | DIN EN 13599 | |||||||||||
| CuCrZr | CW106 | CuCrZr | 2.1293 | C18150 | mould plates, welding equipment, furnace and mould engineering, heavy current engineering | DIN 17670 | |||||||||||
| CuNi2Si | CW111C | CuNi2Si | 2.0855 | C18000 | mould engineering, machine parts, die casting equipment | by arrangement | |||||||||||
|
Products can be supplied by arrangement in compliance with other international standards such as BS, JIS and GOST.
|
|||||||||||||||||
Quality Control
Production Processing
Packing & Delivery
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
A: We provide after-sale service and offer 100% guarantee on our products.
