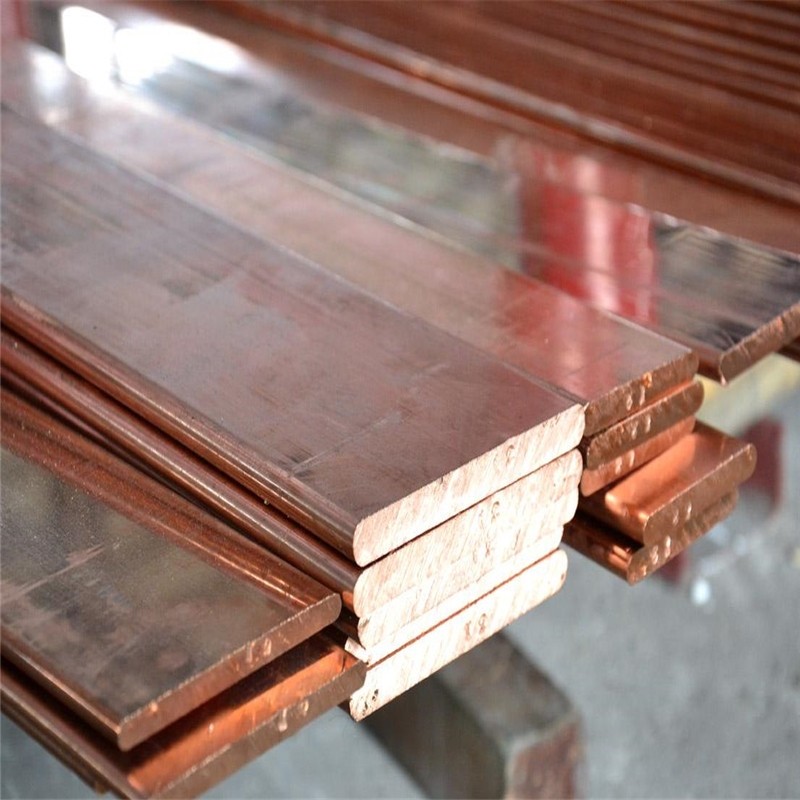

C19025 C19200 Tinned Copper Flat Bar H62 Brass Row
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Copper Busbar | Type | Copper Flat Bar |
---|---|---|---|
Standards | ASTM, DIN, GB, JIS, BS, AISI | Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
Shape | Flat, Square ,rectangular ,etc | Grade | Pure Copper |
Application | Industrial, Underground, Grounding System | Cu (Min) | 99.9% |
High Light | C19025 Tinned Copper Flat Bar,C19200 Tinned Copper Flat Bar,H62 Brass Row |
Uses Of Copper Flat Bars :
1. Electrical grounding and bonding
2. Busbars and electrical conductors
3. Heat exchangers and radiators
4. Architectural and decorative applications
5. Industrial machinery and equipment
6. Plumbing and piping systems
Copper flat bars are often preferred over other materials such as steel or aluminum due to their superior electrical conductivity, durability, and resistance to corrosion. They are also non-magnetic, making them ideal for use in sensitive electronic equipment where magnetic interference can cause problems.
Product Name | copper flat bar |
Grade | C10100 C10200 C10300 C11000 C12200 C12000 |
Thickness (mm) | 0.3-200mm, or customized |
WIDTH | 0.3-160mm, or required |
Length (mm) | 1-6m or as requested |
Surface | Polished,bright,oiled,hair line,brush,mirror,or as required |
Shape | Round, Square, Flat, Hexagon, Oval |
Hardness | O, 1/4 Hard, 1/2Hard, 3/4 Hard, H, EH |
Payment terms | L/C T/T (30%DEPOSIT) |
Delivery time | Within 7-10 Working Days |
Material | |
Copper | GB |
T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, | |
ASTM | |
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, | |
C10930,C10940,C11000,C11300,C11400,C11500,C11600,C12000,C12200, | |
C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C14700, | |
C15100,C15500,C16200,C16500,C17000,C17200,C17300,C17410,C17450, | |
C17460,C17500,C17510,C18700,C19010,C19025,C19200,C19210,C19400, | |
C19500,C19600,C19700, | |
JIS | |
C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,C1720,C1990, | |
Brass | GB |
H96,H90,H85,H80,H70,H68,H65,H63,H62,H59, | |
ASTM | |
C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000, | |
C27200,C27400,C28000,C31400,C31600,C32000,C33200,C33300,C33500, | |
C34000,C34200,C34500,C35000,C35300,C35600C36000,C36500,C37000, | |
C37700,C38000,C38500,C40500,C40800,C40810,C40850,C40860,C41100, | |
C41300,C41500,C42200,C42500,C42520,C42600,C43000,C43400,C44300, | |
C44400,C44500,C46200,C46400,C46500,C47940,C48200,C48500,C50500, | |
C50580,C50700,C51000,C51080,C51100,C51180,C51900,C51980,C52100, | |
C52180,C52400,C52480,C53400,C54400,C60600,C60800,C61300,C61400, | |
C61900,C62300,C62400,C63000,C63020,C63200,C64200,C64210,C64700, | |
C65100,C65400,C65500,C66100,C66400,C66410,C66430,C66700,C67000, | |
C67500,C67600,C68700,C68800,C69100,C69400,C69430,C69700,C69710, | |
C70250,C70260,C70265,C70400,C70600,C70620,C71000,C71500,C71520, | |
C71640,C72200,C72400,C72500,C72650,C72700,C72900,C73500,C74000, | |
C74500,C75200,C75700,C76200,C76400,C77000,C77400,C79200, | |
JIS | |
C2051,C2100,C2200,C2300,C2400,C2600,C2680,C2700,C2720,C2800, | |
C2801,C3501,C3560,C3561,C3601,C3602,C3603,C3604,C3605,C3710, | |
C3712,C3713,C3771,C4250,C4430,C4621,C4622,C4640,C4641,C5101, | |
C5102,C5111,C5191,C5210,C5212,C5341,C5441,C6140,C6161,C6191, | |
C6241,C6280,C6301,C6561,C6711,C6712,C6782,C6783,C6870,C6871, | |
C7060,C7150,C7100,C7164,C7351,C7451,C7521,C7541,C7701,C7941 | |
Brass Flat Bar Alternate name | Brass plate synonyms |
Comparison table of national brass grades and standards | ||||||
China |
Germany |
European |
|
lnternational |
the US |
Japan |
GB |
DIN |
EN |
|
ISO |
UNS |
JIS |
H96 | CuZnS | CuZnS | CWS00L | CuZnS | 21000 | 2100 |
H90 | CuZn10 | CuZn10 | CW501L | CuZn10 | 22000 | 2200 |
H85 | CuZn15 | CuZn15 | CW502L | CuZn15 | 23000 | 2300 |
H80 | CuZn20 | CuZn20 | CW503L | CuZn20 | 24000 | 2400 |
H70 | CuZn30 | CuZn30 | CWS0SL | CuZn30 | 26000 | 2600 |
H68 | CuZn33 | CuZn33 | CW506L | CuZn35 | 26800 | 2680 |
H65 | CuZn36 | CuZn36 | CWS07L | CuZn35 | 27000 | 2700 |
H63 | CuZn37 | CuZn37 | CWS08L | CuZn37 | 27200 | 2720 |
HPb63-3 | CuZn36Pb1.5 | CuZn35Pb1 | CW600N | CuZn35Pb1 | 34000 | 3501 |
HPb63-3 | CuZn36Pb1.5 | CuZn35Pb2 | CW601N | CuZn34Pb2 | 34200 | - |
H62 | CuZn40 | CuZn40 | CWS09N | CuZn40 | 28000 | 3712 |
H60 | CuZn38Pb1.5 | CuZn38Pb2 | CW608N | CuZn37Pb2 | 35000 | - |
HPb63-3 | CuZn36Pb3 | CuZn36Pb3 | CW603N | CuZn36Pb3 | 36000 | 3601 |
HPb59-1 | CuZn39Pb2 | CuZn39Pb2 | CW612N | CuZn38Pb2 | 37700 | 3771 |
- | CuZn40Pb2 | CuZn40Pb2 | CW617N | CuZn40Pb2 | 38000 | 3771 |
- | CuZn28Sn1 | uZn28Sn1As | CW706R | CuZn28Sn1 | 68800 | 4430 |
- - |
CuZn31Si1 CuZn20Al2 |
CuZn31Si1 CuZn20Al2 |
CW708R CW702R |
CuZn31Si1 CuZn20Al2 |
(44300 (68700 |
- (6870 |
product specifications | Area | Copper thickness | Size | Weight | Weight | Weight |
(mm²) | (mm) | (length) | (kg/m) | (kg/3m) | (kg/6m) | |
XZH-25×4 | 100 | ≥0.25 | 3m or 6m | 0.796 | 2.387 | 4.774 |
XZH-27×7 | 189 | ≥0.25 | 3m or 6m | 1.493 | 4.478 | 8.956 |
XZH-30×3 | 90 | ≥0.25 | 3m or 6m | 0.72 | 2.16 | 4.319 |
XZH-30×4 | 120 | ≥0.25 | 3m or 6m | 0.954 | 2.863 | 5.727 |
XZH-40×4 | 160 | ≥0.25 | 3m or 6m | 1.272 | 3.816 | 7.632 |
XZH-40×5 | 200 | ≥0.25 | 3m or 6m | 1.584 | 4.753 | 9.507 |
XZH-50×5 | 250 | ≥0.25 | 3m or 6m | 1.98 | 5.94 | 11.88 |
XZH-50×6 | 300 | ≥0.25 | 3m or 6m | 2.371 | 7.112 | 14.223 |
XZH-60×6 | 360 | ≥0.25 | 3m or 6m | 2.844 | 8.532 | 17.064 |
XZH-60×8 | 480 | ≥0.25 | 3m or 6m | 3.781 | 11.343 | 22.687 |
XZH-80×8 | 640 | ≥0.25 | 3m or 6m | 5.04 | 15.12 | 30.241 |
XZH-25×4 | 100 | ≥0.40 | 3m or 6m | 0.805 | 2.414 | 4.829 |
XZH-27×7 | 189 | ≥0.40 | 3m or 6m | 1.503 | 4.51 | 9.02 |
XZH-30×3 | 90 | ≥0.40 | 3m or 6m | 0.73 | 2.191 | 4.382 |
XZH-30×4 | 120 | ≥0.40 | 3m or 6m | 0.965 | 2.896 | 5.791 |
XZH-40×4 | 160 | ≥0.40 | 3m or 6m | 1.286 | 3.858 | 7.716 |
XZH-40×5 | 200 | ≥0.40 | 3m or 6m | 1.599 | 4.797 | 9.593 |
XZH-50×5 | 250 | ≥0.40 | 3m or 6m | 1.998 | 5.993 | 11.986 |
Surface Finish | Definition | Application |
2B | Those finished, after cold rolling, by heat treatment, picking or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry,Construction material, Kitchen utensils. |
BA | Those processed with bright heat treament after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building construction. |
NO.1 | The surface finished by heat treament and picking or processes corresponding there to after hot rolling. | Chemical tank, pipe. |
European standard | DIN standard (former) | ASTM | Typical properties/application | Manufacturing standard | |||||||||||||
Cu-ETP | CW004A | E-Cu 58 | 2.0065 | C11000 | standard alloy for electrical components, main appli- | DIN EN 13599 | |||||||||||
E-Cu 57 | 2.0060 | cation in switchgear construction | DIN EN 1652 | ||||||||||||||
Cu-HCP Cu-PHC | CW021A CW020A | SE-Cu | 2.0070 | C10300 | hydrogen-resistant, very high conductivity, easy to weld | DIN EN 13599 | |||||||||||
Cu-OF | CW008A | OF-Cu | 2.0040 | C10200 | hydrogen-resistant, very high conductivity, very easy to weld | DIN EN 13599 | |||||||||||
Cu-OFE | CW009A | C10100 | high purity, Cu 99.99% fur vacuum switching systems, targets | DIN EN 13604 | |||||||||||||
Cu-DHP | CW024A | SF-Cu | 2.0090 | C12200 | very easy to weld, without particular conductivity requirements | DIN EN 1652 DIN EN 1653 AD-2000W6/2 |
|||||||||||
CuAg0,10P | CW016A | CuAg0,1P | 2.1191 | C10700 | mould plates, commutator rings, electrodes | DIN EN 13599 | |||||||||||
CuCrZr | CW106 | CuCrZr | 2.1293 | C18150 | mould plates, welding equipment, furnace and mould engineering, heavy current engineering | DIN 17670 | |||||||||||
CuNi2Si | CW111C | CuNi2Si | 2.0855 | C18000 | mould engineering, machine parts, die casting equipment | by arrangement | |||||||||||
Products can be supplied by arrangement in compliance with other international standards such as BS, JIS and GOST.
|
Quality Control
Production Processing
Packing & Delivery
FAQ
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We provide after-sale service and offer 100% guarantee on our products.
