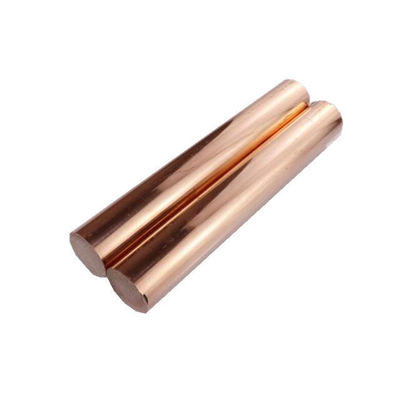

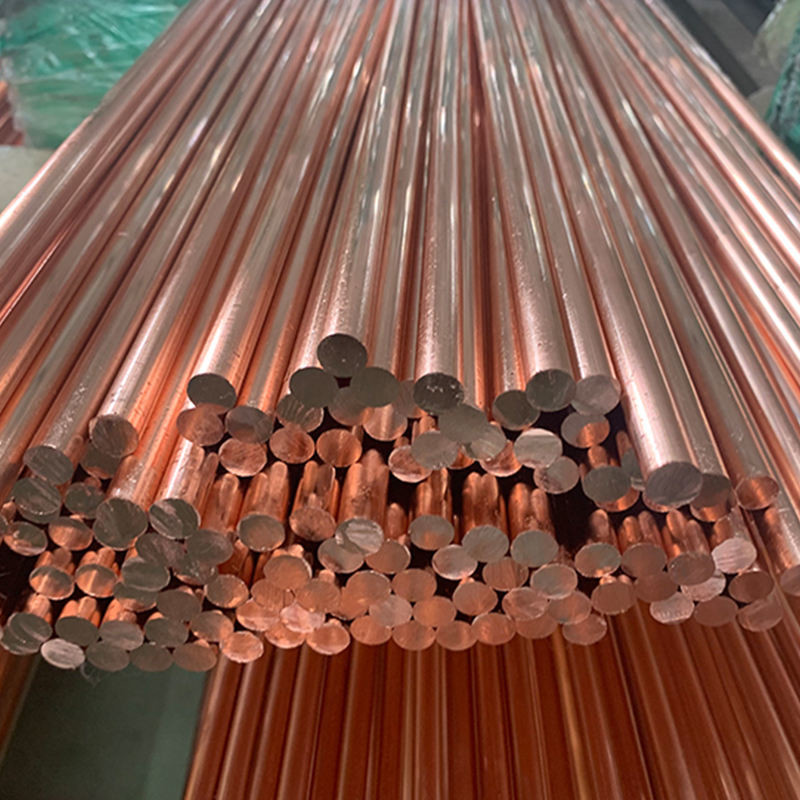

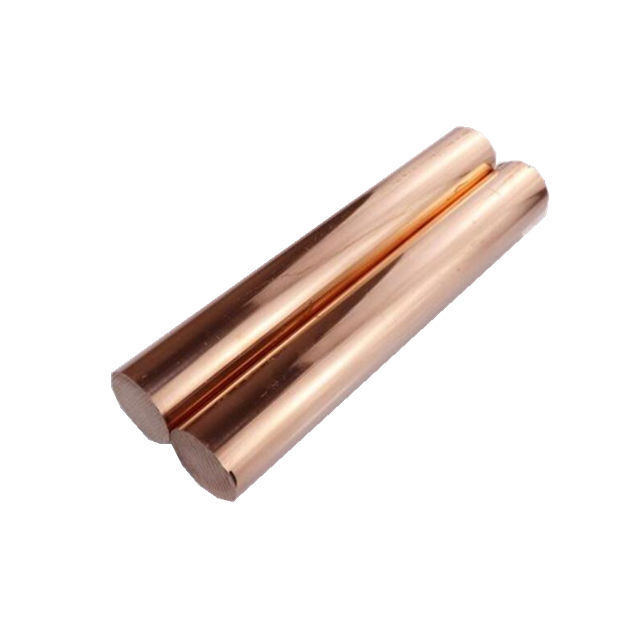

C27000 C27200 Copper Rod Beryllium Copper Round Bar
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Copper Rod |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3~10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Copper Rod | Shape | Round |
|---|---|---|---|
| Surface | Mill,polished,bright,oiled,hair Line,brush,mirror,sand Bla | Application | Building,War Industry, Car Industry And Communicationindustry |
| Temper | Soft, 1/4 Hard, 1/2 Hard, Hard, Extra Hard | Type | Copper Bars |
| Diameter | ≤ 500mm | Length | Straight ≤ 12000mm |
| High Light | C27000 Copper Rod,C27200 Copper Rod,Beryllium Copper Round Bar |
||
Product Description
C27000 C27200 Copper Bar / Copper Rod
Application of Copper Rod
Electrical wiring: Copper rods are commonly used in the electrical industry for the production of wires, cables, and busbars due to their excellent electrical conductivity.
Grounding systems: Copper rods are also used for grounding systems, such as lightning protection and earthing systems, due to their low resistance to electrical current and corrosion resistance.
Plumbing: Copper rods are used in plumbing systems, including water pipes and fittings, due to their corrosion resistance, ductility, and ability to withstand high pressures.
Heat exchangers: Copper rods are used in heat exchangers due to their high thermal conductivity, which allows for efficient heat transfer.
Architecture and decorative applications: Copper rods are often used in architectural and decorative applications due to their attractive appearance and unique color. Examples include roofing, gutters, and downspouts.
Industrial applications: Copper rods are used in various industrial applications, such as in the production of alloys, welding, and brazing.
Overall, copper rods are a versatile material with many applications across various industries due to their excellent electrical conductivity, corrosion resistance, ductility, thermal conductivity, and aesthetic qualities.
| Product Name | Copper Bar |
| Grade | ASTM C10100,C10200,C10300,C10400,C10500,C10700,C10800, C10910,C10920,C10930,C10940,C11000,C11300,C11400, C11500,C11600,C12000,C12200,C12300,C12500,C14200, C14420,C14500,C14510,C14520,C14530,C14700,C15100, C15500,C16200,C16500,C17000,C17200,C17300,C17410, C17450,C17460,C17500,C17510,C18700,C19010,C19025, C19200,C19210,C19400,C19500,C19600,C19700,etc. JIS C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700, C1720,C1990,etc. EN Cu-OFE, Cu-HCP, Cu-PHC, Cu-ETP, Cu-DHP, Cu-DLP; CW009A, CW021A, CW020A, CW004A, CW024A, CW023A DIN OF-Cu, SE-Cu, E-Cu58, SF-Cu, SW-Cu. |
| Temper | Soft, 1/4 Hard, 1/2 Hard, Hard, Extra Hard |
| Size | Diameter: ≤ 500mm Length: Straight ≤ 12000mm |
| Chemical Requirements | ||||||||||
| CU+AG (%) | SN (%) | ZN (%) | PB (%) | NI (%) | FE (%) | SB (%) | S (%) | AS (%) | BI (%) | O (%) |
| ≥99.90 | ≤0.002 | ≤0.005 | ≤0.005 | ≤0.005 | ≤0.005 | ≤0.002 | ≤0.005 | ≤0.002 | ≤0.001 | ≤0.06 |
| Alloy | Chemical Composition | ||||
| QB | JIS /ASTM | Cu | P | O | Other |
| T2 | JIS C1100 | 99.9 | 0.015-0.040 | - | balance |
| TU | ASTM C10300 | 99.95 | 0.001-0.005 | - | balance |
| TP1 | JIS C1220 | 99.9 | 0.004-0.012 | - | balance |
| Grade(China) | Grade(Japan) | Temper | Vickers Hardness (HV) | Tensile strength(Mpa) | Elongation(%) |
| T2/T3/TP1/TP2 | C11000/C1201 | M | - | ≥290 | ≥40 |
| C1220.etc. | Y4 | 75-125 | 325~410 | ≥35 | |
| Y2 | 85-145 | 340~460 | ≥25 | ||
| Y | 105-175 | 390~530 | ≥13 | ||
| T | - | ≥490 | - |
Quality Control
Production Processing
Packing & Delivery
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
A: We provide after-sale service and offer 100% guarantee on our products.
