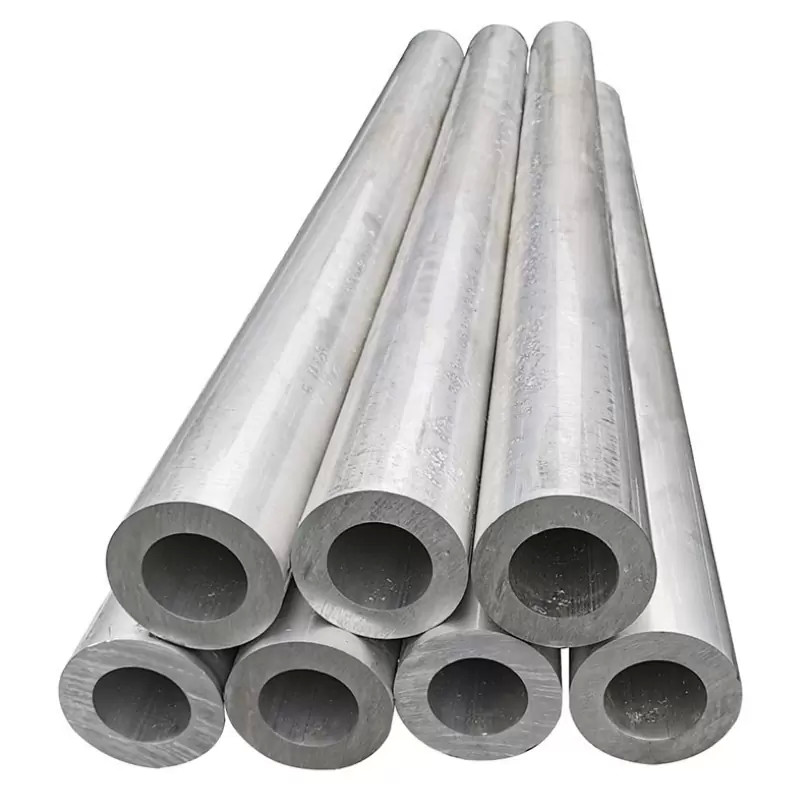

Round 6063 Aluminium Tube Pipe Brushed Sand Blasted

Place of Origin China
Brand Name SSZG
Certification ISO CE SGS ROHS
Model Number Aluminum Tube
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard Export Seaworthy Package, or customized package
Delivery Time 3-15 days
Payment Terms L/C, T/T
Supply Ability 20000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Aluminum Tube Shape Round
Tolerance ±1% Hardness 9WB-16WB
Alloy Or Not Is Alloy Al (Min) 97%
Processing Service Bending, Decoiling, Welding, Punching, Cutting Material Aluminum
High Light

6063 aluminium tube Sand Blasted

,

Brushed 6063 aluminium tube

,

Round 6063 aluminum pipe

Leave a Message
Product Description

Composition of aluminum pipe



The composition of aluminum pipes can vary depending on the specific alloy used and the manufacturing process. However, most aluminum pipes are made from aluminum alloys that contain small amounts of other elements to enhance their properties.

The most commonly used aluminum alloys for pipes are 6061-T6 and 6063-T6. The composition of these alloys is as follows:



6061-T6:

Aluminum: 97.9%

Magnesium: 1.0%

Silicon: 0.6%

Iron: 0.28%

Copper: 0.25%

Zinc: 0.2%

Titanium: 0.15%

Manganese: 0.1%

Chromium: 0.04%



6063-T6:

Aluminum: 98.9%

Silicon: 0.4%

Iron: 0.25%

Copper: 0.1%

Zinc: 0.1%

Manganese: 0.1%

Magnesium: 0.05%

Titanium: 0.05%



Other aluminum alloys that are used for pipes include 3003, 5086, and 5083. These alloys have different compositions, with varying amounts of elements such as copper, magnesium, manganese, and zinc.

The specific alloy used for an aluminum pipe depends on the intended application, as the different compositions can provide varying levels of strength, corrosion resistance, and other properties.



Product Name Aluminium Round Tube/Pipe
Material Grade 1000 series: 1050,1060,1070,1080,1100,1435, etc 2000 series: 2011,2014,2017,2024, etc 3000 series: 3002,3003,3104,3204,3030, etc 5000 series: 5005,5025,5040,5056,5083, etc 6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc 7000 series: 7003,7005,7050,7075, etc
Size Outer Diameter:3-250mm
Wall Thickness: 0.3-50mm
Length: 10mm -6000mm
Standards ASTM, ASME,EN, JIS, DIN,GB/T etc
Surface treatment Mill finished,anodized,powder coating,Sand blast,etc
Surface colors Nature, silver, bronze, champagne, black, gloden, etc As customized
Status T4 T5 T6 or other special status
Usage aluminum profile for windows/ doors/ decoration/ construction/ curtain wall
Packing Protective film +plastic film or EPE +kraft paper
MOQ 1 tons. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
Press Machine 500-4000 tons all together 64 press lines
Moulding 1. Using our mould, no fee; 2. Using customer drawing, opening mould, usually about 5 tons the moulding fee is free; 3. Can be diguessed.



Aluminum Grade
Alloy Series Typical Alloy
1000 Series 1050 1060 1070 1100 Pure aluminum
2000 Series 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 Aluminum copper alloy
3000 Series 3A21, 3003, 3103, 3004, 3005, 3105 Aluminum manganese alloy
4000 Series 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A Aluminum silicon alloy
5000 Series 5052, 5083, 5754, 5005, 5086,5182 Aluminum magnesium alloy
6000 Series 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 Aluminum magnesium silicon alloy
7000 Series 7075, 7A04, 7A09, 7A52, 7A05 Aluminum magnesium silicon alloy
8000 Series 8006 8011 8079  Aluminum foil alloy




Round 6063 Aluminium Tube Pipe Brushed Sand Blasted 0Round 6063 Aluminium Tube Pipe Brushed Sand Blasted 1Round 6063 Aluminium Tube Pipe Brushed Sand Blasted 2



Application



Round 6063 Aluminium Tube Pipe Brushed Sand Blasted 3



Quality Control



Round 6063 Aluminium Tube Pipe Brushed Sand Blasted 4



Production Processing



Round 6063 Aluminium Tube Pipe Brushed Sand Blasted 5

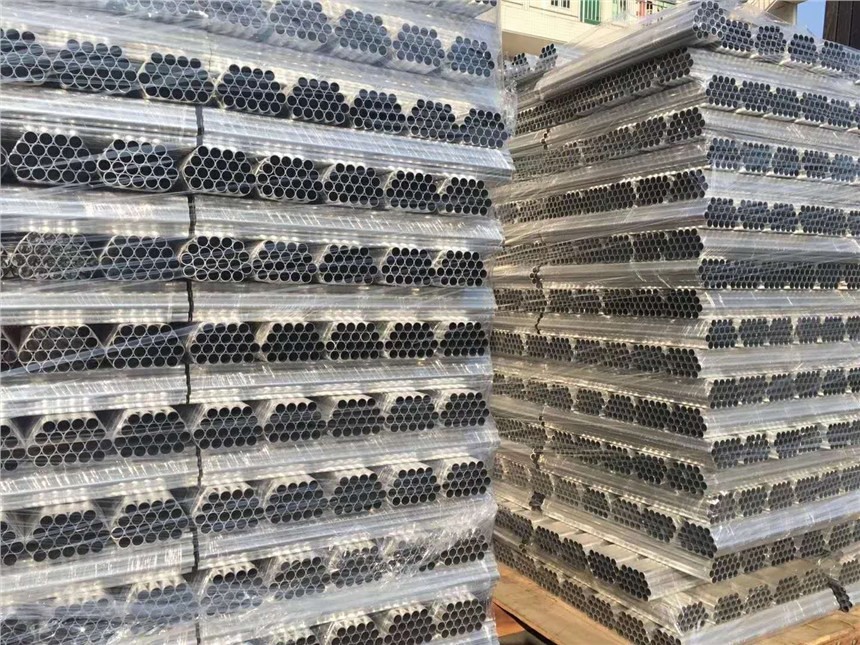

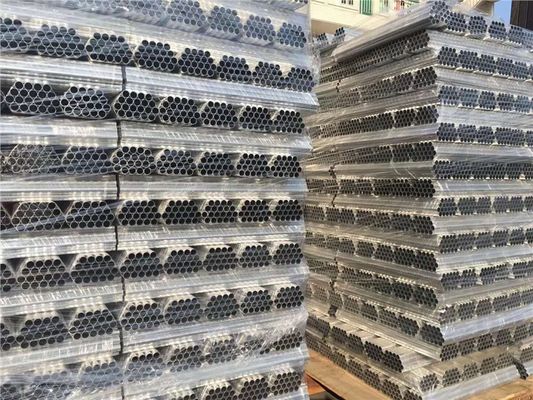

Packing & Delivery



Round 6063 Aluminium Tube Pipe Brushed Sand Blasted 6



Round 6063 Aluminium Tube Pipe Brushed Sand Blasted 7





FAQ



1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.


2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.


3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available


4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.


5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.


6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.


7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.​
