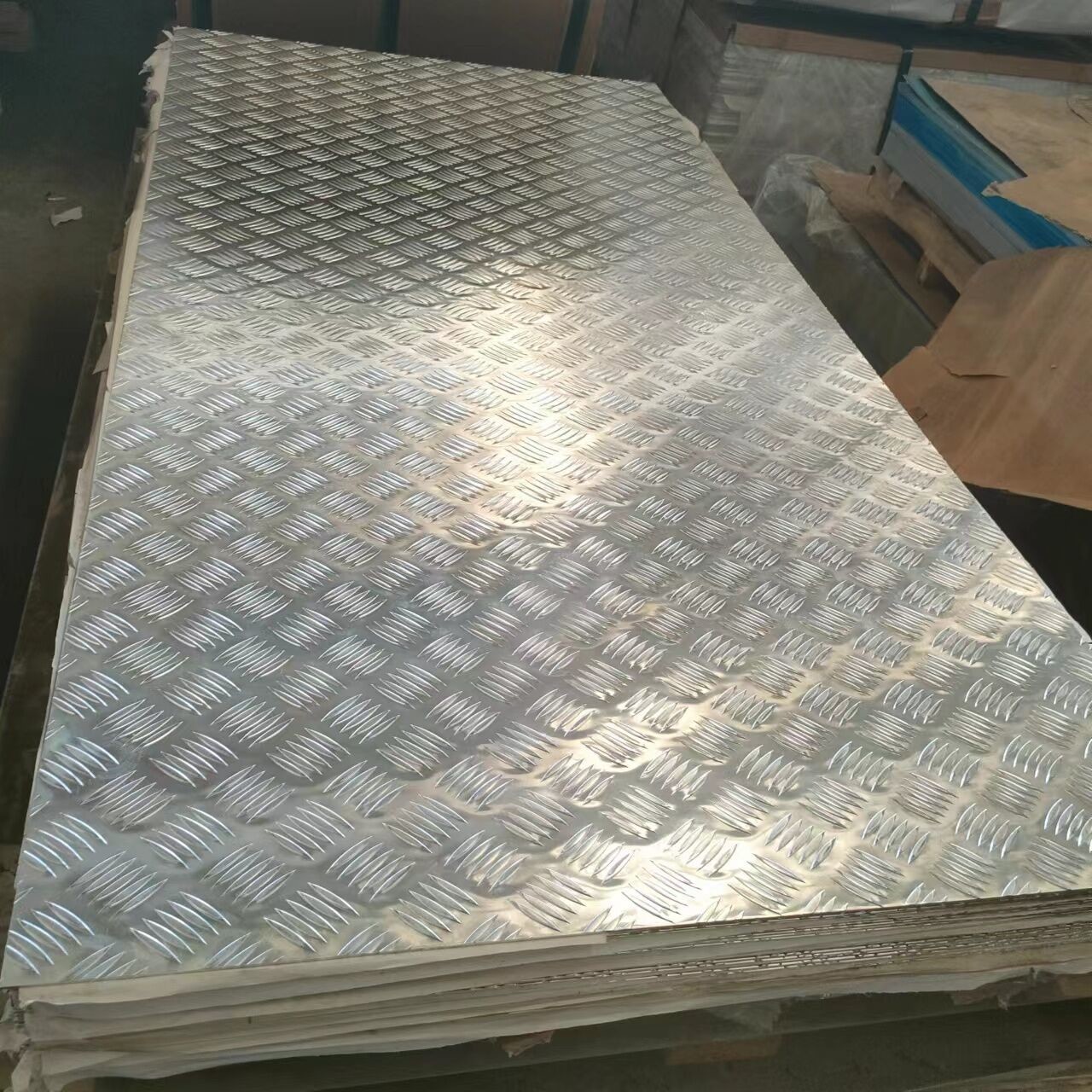

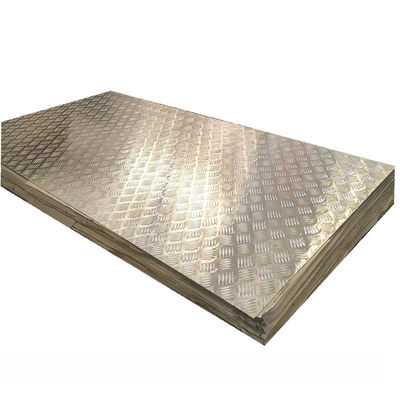

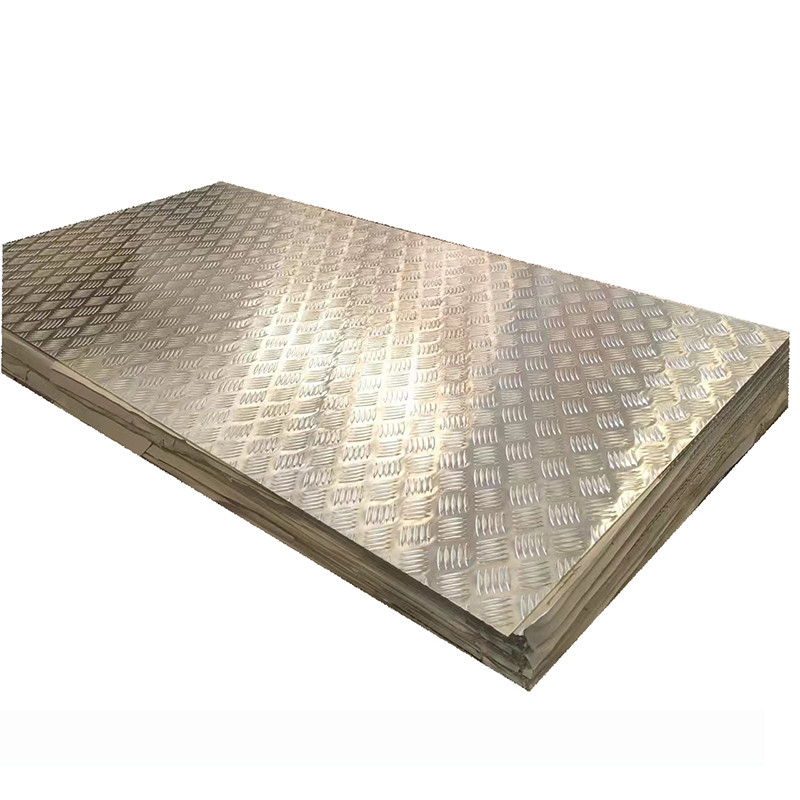

5052h32 Aluminum Sheets Metal ASTM Standard

Place of Origin China
Brand Name SSZG
Certification ISO CE SGS ROHS
Model Number Aluminum Sheet
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard Export Seaworthy Package, or customized package
Delivery Time 3-15 days
Payment Terms L/C, T/T
Supply Ability 20000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Aluminum Sheet Standard JIS, AISI, ASTM, GB, DIN, EN
Keyword Aluminum Plate Type Plate
Surface Treatment Coated/Embossed Processing Service Bending, Decoiling, Welding, Punching, Cutting
Material Aluminum Alloy Metal Temper H14 H24
High Light

5083 Aluminum Sheets Metal

,

5052 Aluminum Sheets Metal

,

5052h32 Aluminum Sheet

Leave a Message
Product Description
Product Name Aluminum Alloy Sheet/Plate
Standard AISI ASTM JIS DIN EN and GB
Material Grade

1000 Series:1050,1060,1080,1100,1435,etc.

2000 Series:2011,2014,2017,2024,2A12,2A16,2A06,etc.

3000Series:3002,3003,3004,3104,3204,3030,3A21,etc.

5000 Series:5005,5025,5040,5052,5056,5083,5A05,etc.

6000Series:6003,6060,6082,6083,6063,6061,etc.

7000 Series:7003,7005,7050,7075,etc.

Size

Thickness: 0.1mm~200mm

Width: 100mm~2000mm

Length: 2m,3m,5.8m,6m,or as required

Temper O, H12, H14, H18, H22, H24, H32, H34, H36,T3,T5,T6,ect
Surface Bright, polished, hair line, brush, sand blast,checkered, embossed, etching, etc.
Price Term Ex-work, FOB, CIF , CFR, etc.
Payment Term T/T, L/C, Western Union, etc.
Delivery Time 7-14 days
Package Standard export package ,or as required.
Application

1 series of industrial pure aluminum, widely used in building curtain wall, signs and other industries;

2 series and 7 series are often used in aerospace field because of their high hardness and mild;

3 series rust resistance performance is outstanding, widely used in air conditioning pipes, liquid containers, etc.;

4 series, 6 series are more used in automobile, ship, rail, 5G communication equipment and other industries.


Standard JIS G3141,DIN1623,EN10130
Thickness 0.15-6.0mm(Aluminum sheet) 6.0-25.0mm(Aluminum plate)
Temper O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc.
Surface Treatment Mill Finished, Anodized, Embossed, PVC Coated etc
Alloy Application field
1000 1050 Insulation, food industry, decoration, lamp, traffic signs etc.
1060 Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts.
1070 Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
1100 Cooker, building material, printing, heat exchanger, bottle cap etc
2000 2A12 2024 Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,car parts and various other structural parts.
3000 3003 3004
3005 3105
Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc.
5000 5052 Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,equipment and medical device panel etc.
5005 Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
5086 Ship board, deck, bottom and edge panel etc.
5083 Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board,automotive and aircraft panel, cooling device and automotive molding etc.
5182
5454
5754 Tanker body, marine facilities, pressure container, transportation etc.
6000 6061
6083
6082
Railway inside and outside parts, board and bed plate. Industry molding
Highly stressed applications includes Roofing construction,transportation, and marine as well as mould.
6063 Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
7000 7005 Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers.
7050 Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment.
7075 Aerospace industry, military industry, electronic etc.
Garde
Chemical composition
Si Fe Cu Mn Mg Zn Ti Other Al
1050 0.25 0.4 0.05 0.05 0.05 0.05 0.03 0.03 99.5
1060 0.25 0.35 0.05 0.03 0.03 0.05 0.03 0.03 99.6
1100 Si+Fe:0.95 0.05-0.2 0.05 - 0.1 - 0.15 99
2A12 0.5 0.5 3.8-4.9 0.3-0.9 1.2-1.8 0.3 0.15 1 remains
2017 0.2-0.8 0.7 3.5-4.5 0.4-0.1 0.4-0.8 0.25 0.15 0.15 remains
2014 0.5-1.2 0.7 3.9-5 0.4-1.2 0.2-0.8 0.25 0.15 0.15 remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - 0.1 - 0.15 remains
3005 0.6 0.7 0.3 1.0-1.5 0.2-0.6 0.25 0.1 0.15 remains
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.4 0.1 0.15 remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.25 - 0.15 remains
5052 0.25 0.4 0.1
0.1
2.2-2.8 0.1 - 0.15 remains
5083 0.4 0.4 0.1 0.4-1 4.0-4.9 0.25 0.15 0.15 remains
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.25 0.15 0.15 remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.2 0.15 0.15 remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.25 0.15 0.15 remains
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.15 remains
6082 0.7-1.3 0.5 0.1 0.4-1 0.6-1.2 0.2 0.1 0.15 remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 5.1-5.6 0.2 0.15 remains




5052h32 Aluminum Sheets Metal ASTM Standard 05052h32 Aluminum Sheets Metal ASTM Standard 15052h32 Aluminum Sheets Metal ASTM Standard 25052h32 Aluminum Sheets Metal ASTM Standard 3



Quality Control

5052h32 Aluminum Sheets Metal ASTM Standard 4



Production Processing



5052h32 Aluminum Sheets Metal ASTM Standard 5



Packing & Delivery



5052h32 Aluminum Sheets Metal ASTM Standard 6



5052h32 Aluminum Sheets Metal ASTM Standard 7





FAQ



1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.


2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.


3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available


4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.


5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.


6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.


7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.​
