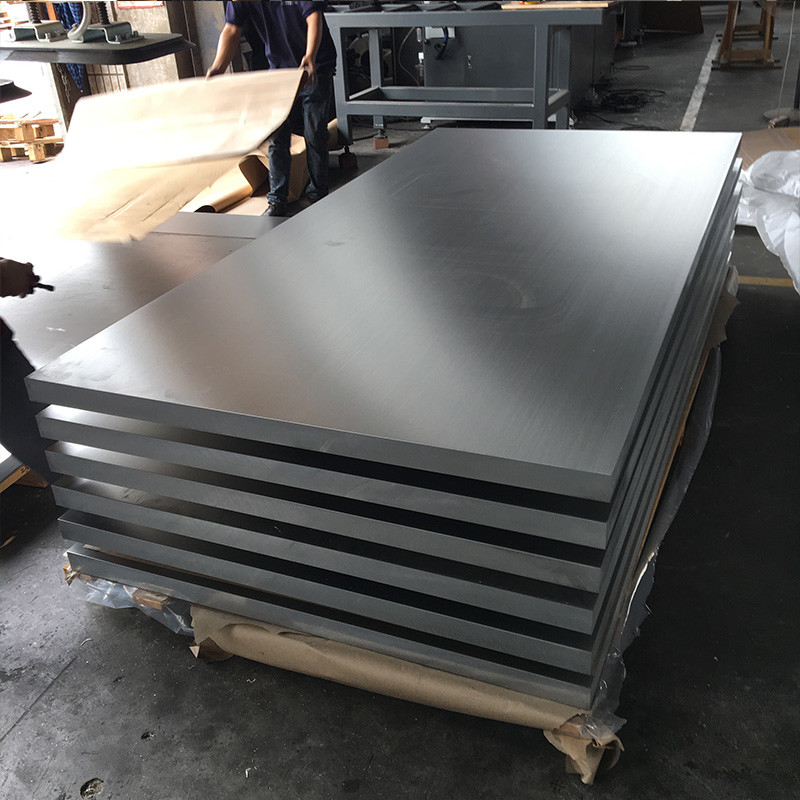

1060 1100 Aluminum Panel Sheet AISI ASTM 3003 Aluminum Sheet
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Aluminum Sheet |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3-15 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Aluminum Sheet | Standard | JIS, AISI, ASTM, GB, DIN, EN |
|---|---|---|---|
| Keyword | Aluminum Plate | Surface Treatment | Coated/Embossed |
| Processing Service | Bending, Decoiling, Welding, Punching, Cutting | Surface | Smooth |
| High Light | 1060 Aluminum Panel Sheet,1100 Aluminum Panel Sheet,3003 Aluminum Sheet |
||
Product Description
Advantages of aluminum plate
1. Lightweight: Aluminum has a low density, making it significantly lighter than other metals like steel. This makes it an ideal material for applications where weight reduction is essential, such as in aerospace and automotive industries.
2. Corrosion-resistant: Aluminum has excellent corrosion resistance, which makes it ideal for outdoor and marine applications where exposure to moisture and salt can cause rust and degradation in other metals.
3. High strength-to-weight ratio: Aluminum has a high strength-to-weight ratio, which means it is strong and durable while remaining lightweight. This property makes it ideal for applications where strength and durability are essential but weight reduction is also important.
4. Formable: Aluminum can be easily formed into various shapes and sizes, which makes it a versatile material that can be used for a wide range of applications.
5. Recyclable: Aluminum is a 100% recyclable material, which makes it a sustainable choice for manufacturers and consumers concerned with reducing their environmental impact.
6. Excellent thermal and electrical conductivity: Aluminum has excellent thermal and electrical conductivity, which makes it ideal for use in heat exchangers, electrical conductors, and other applications where heat transfer or electrical conductivity is important.
| Product Name | Aluminium Steel Sheet | |
| Standard | ATSTM B209, JIS H4000-2006,GB/T3190-2008,GB/T3880-2006, etc. | |
| Material | 1000 Series:1050,1060,1080,1100,1435,etc.2000 Series:2011,2014,2017,2024,2A12,2A16,2A06,etc.3000 Series:3002,3003,3004,3104,3204,3030,3A21,etc.5000 Series:5005,5025,5040,5052,5056,5083,5A05,etc.6000 Series:6003,6060,6082,6083,6063,6061,etc.7000 Series:7003,7005,7050,7075,etc. | |
| Temper | O, H12, H14, H18, H22, H24, H32, H34, H36,T3,T5,T6,ect | |
| Specifications | Thickness | 0.1mm~200mm |
| Width | 100mm~2000mm | |
| Length | 2m,3m,5.8m,6m,or as required | |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. | |
| Price Term | Ex-work, FOB, CIF , CFR, etc. | |
| Payment Term | T/T, L/C, Western Union, etc. | |
| Delivery Time | 7-14 days | |
| Package | Export standard package: bundled wooden box, suit for all kinds of transport, or be required. | |
| MOQ | 1 tons | |
| Standard | JIS G3141,DIN1623,EN10130 | |
| Thickness | 0.15-6.0mm(Aluminum sheet) 6.0-25.0mm(Aluminum plate) | |
| Temper | O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. | |
| Surface Treatment | Mill Finished, Anodized, Embossed, PVC Coated etc | |
| Alloy | Application field | |
| 1000 | 1050 | Insulation, food industry, decoration, lamp, traffic signs etc. |
| 1060 | Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts. | |
| 1070 | Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc | |
| 1100 | Cooker, building material, printing, heat exchanger, bottle cap etc | |
| 2000 | 2A12 2024 | Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,car parts and various other structural parts. |
| 3000 | 3003 3004 3005 3105 |
Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc. |
| 5000 | 5052 | Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,equipment and medical device panel etc. |
| 5005 | Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel. | |
| 5086 | Ship board, deck, bottom and edge panel etc. | |
| 5083 | Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board,automotive and aircraft panel, cooling device and automotive molding etc. | |
| 5182 | ||
| 5454 | ||
| 5754 | Tanker body, marine facilities, pressure container, transportation etc. | |
| 6000 | 6061 6083 6082 |
Railway inside and outside parts, board and bed plate. Industry molding Highly stressed applications includes Roofing construction,transportation, and marine as well as mould. |
| 6063 | Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products. | |
| 7000 | 7005 | Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers. |
| 7050 | Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment. | |
| 7075 | Aerospace industry, military industry, electronic etc. | |
| Garde |
Chemical composition
|
||||||||
| Si | Fe | Cu | Mn | Mg | Zn | Ti | Other | Al | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.03 | 99.6 |
| 1100 | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | 0.1 | - | 0.15 | 99 | |
| 2A12 | 0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.3 | 0.15 | 1 | remains |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-0.1 | 0.4-0.8 | 0.25 | 0.15 | 0.15 | remains |
| 2014 | 0.5-1.2 | 0.7 | 3.9-5 | 0.4-1.2 | 0.2-0.8 | 0.25 | 0.15 | 0.15 | remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | 0.1 | - | 0.15 | remains |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.2-0.6 | 0.25 | 0.1 | 0.15 | remains |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3-0.8 | 0.2-0.8 | 0.4 | 0.1 | 0.15 | remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.25 | - | 0.15 | remains |
| 5052 | 0.25 | 0.4 | 0.1 |
0.1
|
2.2-2.8 | 0.1 | - | 0.15 | remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1 | 4.0-4.9 | 0.25 | 0.15 | 0.15 | remains |
| 5182 | 0.2 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.25 | 0.15 | 0.15 | remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.2 | 0.15 | 0.15 | remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.25 | 0.15 | 0.15 | remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.15 | remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1 | 0.6-1.2 | 0.2 | 0.1 | 0.15 | remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 5.1-5.6 | 0.2 | 0.15 | remains |
Quality Control
Production Processing
Packing & Delivery
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
A: We provide after-sale service and offer 100% guarantee on our products.
