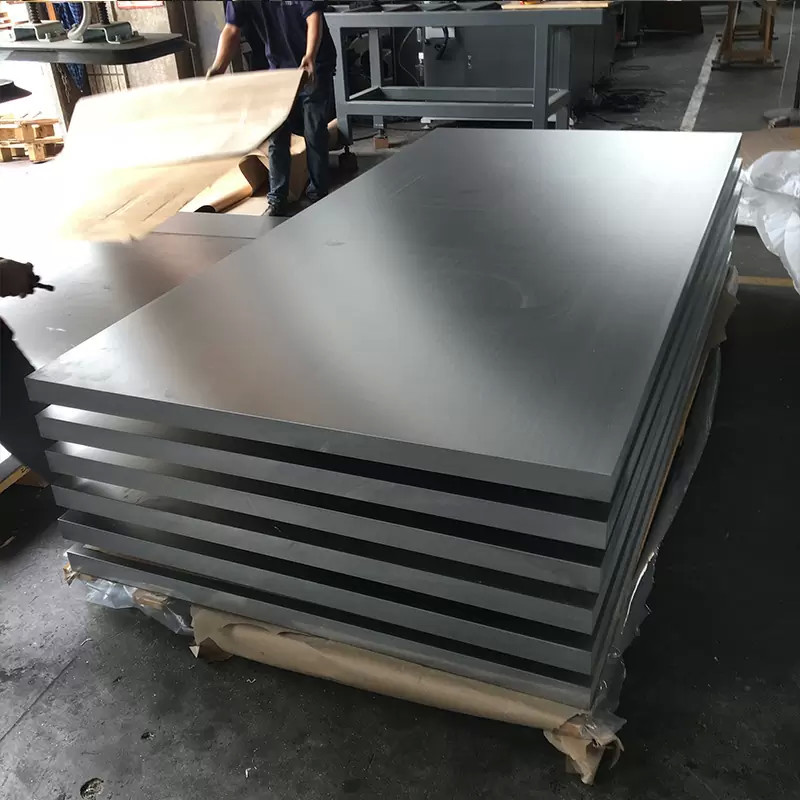

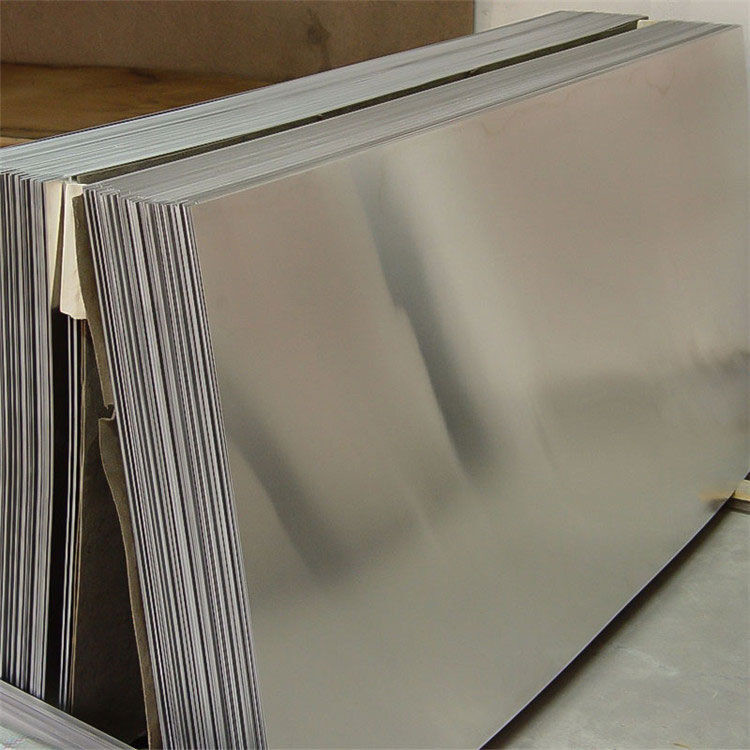

1mm Aluminum Sheets Metal Coated JIS AISI Standard
Place of Origin | China |
---|---|
Brand Name | SSZG |
Certification | ISO CE SGS ROHS |
Model Number | Aluminum Sheet |
Minimum Order Quantity | 1 Ton |
Price | Negotiable |
Packaging Details | Standard Export Seaworthy Package, or customized package |
Delivery Time | 3-15 days |
Payment Terms | L/C, T/T |
Supply Ability | 20000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Aluminium Sheet | Standard | JIS, AISI, ASTM, GB, DIN, EN |
---|---|---|---|
Keyword | Aluminium Plate | Application | Construction |
Surface Treatment | Coated/Embossed | Processing Service | Bending, Decoiling, Welding, Punching, Cutting |
Material | Aluminum Alloy Metal | ||
High Light | JIS Aluminum Sheets Metal,AISI Aluminum Sheets Metal,Embossed 1mm aluminium sheet |
Product Name | Aluminum Alloy Sheet/Plate | |
Standard | AISI ASTM JIS DIN EN and GB | |
Material Grade |
1000 Series:1050,1060,1080,1100,1435,etc. 2000 Series:2011,2014,2017,2024,2A12,2A16,2A06,etc. 3000Series:3002,3003,3004,3104,3204,3030,3A21,etc. 5000 Series:5005,5025,5040,5052,5056,5083,5A05,etc. 6000Series:6003,6060,6082,6083,6063,6061,etc. 7000 Series:7003,7005,7050,7075,etc. |
|
Size |
Thickness: 0.1mm~200mm Width: 100mm~2000mm Length: 2m,3m,5.8m,6m,or as required |
|
Temper | O, H12, H14, H18, H22, H24, H32, H34, H36,T3,T5,T6,ect | |
Surface | Bright, polished, hair line, brush, sand blast,checkered, embossed, etching, etc. | |
Price Term | Ex-work, FOB, CIF , CFR, etc. | |
Payment Term | T/T, L/C, Western Union, etc. | |
Delivery Time | 7-14 days | |
Package | Standard export package ,or as required. | |
Application |
1 series of industrial pure aluminum, widely used in building curtain wall, signs and other industries; 2 series and 7 series are often used in aerospace field because of their high hardness and mild; 3 series rust resistance performance is outstanding, widely used in air conditioning pipes, liquid containers, etc.; 4 series, 6 series are more used in automobile, ship, rail, 5G communication equipment and other industries. |
Standard | JIS G3141,DIN1623,EN10130 | |
Thickness | 0.15-6.0mm(Aluminum sheet) 6.0-25.0mm(Aluminum plate) | |
Temper | O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc. | |
Surface Treatment | Mill Finished, Anodized, Embossed, PVC Coated etc | |
Alloy | Application field | |
1000 | 1050 | Insulation, food industry, decoration, lamp, traffic signs etc. |
1060 | Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts. | |
1070 | Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc | |
1100 | Cooker, building material, printing, heat exchanger, bottle cap etc | |
2000 | 2A12 2024 | Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,car parts and various other structural parts. |
3000 | 3003 3004 3005 3105 |
Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc. |
5000 | 5052 | Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,equipment and medical device panel etc. |
5005 | Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel. | |
5086 | Ship board, deck, bottom and edge panel etc. | |
5083 | Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board,automotive and aircraft panel, cooling device and automotive molding etc. | |
5182 | ||
5454 | ||
5754 | Tanker body, marine facilities, pressure container, transportation etc. | |
6000 | 6061 6083 6082 |
Railway inside and outside parts, board and bed plate. Industry molding Highly stressed applications includes Roofing construction,transportation, and marine as well as mould. |
6063 | Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products. | |
7000 | 7005 | Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers. |
7050 | Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment. | |
7075 | Aerospace industry, military industry, electronic etc. |
Garde |
Chemical composition
|
||||||||
Si | Fe | Cu | Mn | Mg | Zn | Ti | Other | Al | |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.5 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.03 | 99.6 |
1100 | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | 0.1 | - | 0.15 | 99 | |
2A12 | 0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.3 | 0.15 | 1 | remains |
2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-0.1 | 0.4-0.8 | 0.25 | 0.15 | 0.15 | remains |
2014 | 0.5-1.2 | 0.7 | 3.9-5 | 0.4-1.2 | 0.2-0.8 | 0.25 | 0.15 | 0.15 | remains |
3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | 0.1 | - | 0.15 | remains |
3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.2-0.6 | 0.25 | 0.1 | 0.15 | remains |
3105 | 0.6 | 0.7 | 0.3 | 0.3-0.8 | 0.2-0.8 | 0.4 | 0.1 | 0.15 | remains |
5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.25 | - | 0.15 | remains |
5052 | 0.25 | 0.4 | 0.1 |
0.1
|
2.2-2.8 | 0.1 | - | 0.15 | remains |
5083 | 0.4 | 0.4 | 0.1 | 0.4-1 | 4.0-4.9 | 0.25 | 0.15 | 0.15 | remains |
5182 | 0.2 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.25 | 0.15 | 0.15 | remains |
5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.2 | 0.15 | 0.15 | remains |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.25 | 0.15 | 0.15 | remains |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.15 | remains |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1 | 0.6-1.2 | 0.2 | 0.1 | 0.15 | remains |
7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 5.1-5.6 | 0.2 | 0.15 | remains |
Quality Control
Production Processing
Packing & Delivery
FAQ
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We provide after-sale service and offer 100% guarantee on our products.
