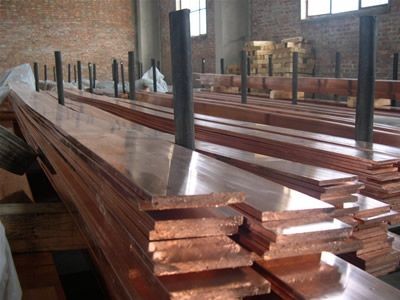

Sgs Rohs Copper Row Decoiling Flat Copper Busbar
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO CE SGS ROHS |
| Model Number | Copper Flat Bar |
| Minimum Order Quantity | 500KG |
| Price | Negotiable |
| Packaging Details | Standard Export Seaworthy Package, or customized package |
| Delivery Time | 3~10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 Ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Copper Busbar | Standards | ASTM, DIN, GB, JIS, BS, AISI |
|---|---|---|---|
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching | Grade | Pure Copper |
| Application | Power Distribution | Alloy Or Not | Non-Alloy |
| High Light | ROHS Copper Row,Decoiling Copper Row,Flat Copper Busbar |
||
Product Description
Copper Row
| Product Name | copper flat bar |
| Grade | C10100 C10200 C10300 C11000 C12200 C12000 |
| Thickness (mm) | 0.3-200mm, or customized |
| WIDTH | 0.3-160mm, or required |
| Length (mm) | 1-6m or as requested |
| Surface | Polished,bright,oiled,hair line,brush,mirror,or as required |
| Shape | Round, Square, Flat, Hexagon, Oval |
| Hardness | O, 1/4 Hard, 1/2Hard, 3/4 Hard, H, EH |
| Payment terms | L/C T/T (30%DEPOSIT) |
| Delivery time | Within 7-10 Working Days |
| Material | |
| Copper | GB |
| T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, | |
| ASTM | |
| C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, | |
| C10930,C10940,C11000,C11300,C11400,C11500,C11600,C12000,C12200, | |
| C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C14700, | |
| C15100,C15500,C16200,C16500,C17000,C17200,C17300,C17410,C17450, | |
| C17460,C17500,C17510,C18700,C19010,C19025,C19200,C19210,C19400, | |
| C19500,C19600,C19700, | |
| JIS | |
| C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,C1720,C1990, | |
| Brass | GB |
| H96,H90,H85,H80,H70,H68,H65,H63,H62,H59, | |
| ASTM | |
| C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000, | |
| C27200,C27400,C28000,C31400,C31600,C32000,C33200,C33300,C33500, | |
| C34000,C34200,C34500,C35000,C35300,C35600C36000,C36500,C37000, | |
| C37700,C38000,C38500,C40500,C40800,C40810,C40850,C40860,C41100, | |
| C41300,C41500,C42200,C42500,C42520,C42600,C43000,C43400,C44300, | |
| C44400,C44500,C46200,C46400,C46500,C47940,C48200,C48500,C50500, | |
| C50580,C50700,C51000,C51080,C51100,C51180,C51900,C51980,C52100, | |
| C52180,C52400,C52480,C53400,C54400,C60600,C60800,C61300,C61400, | |
| C61900,C62300,C62400,C63000,C63020,C63200,C64200,C64210,C64700, | |
| C65100,C65400,C65500,C66100,C66400,C66410,C66430,C66700,C67000, | |
| C67500,C67600,C68700,C68800,C69100,C69400,C69430,C69700,C69710, | |
| C70250,C70260,C70265,C70400,C70600,C70620,C71000,C71500,C71520, | |
| C71640,C72200,C72400,C72500,C72650,C72700,C72900,C73500,C74000, | |
| C74500,C75200,C75700,C76200,C76400,C77000,C77400,C79200, | |
| JIS | |
| C2051,C2100,C2200,C2300,C2400,C2600,C2680,C2700,C2720,C2800, | |
| C2801,C3501,C3560,C3561,C3601,C3602,C3603,C3604,C3605,C3710, | |
| C3712,C3713,C3771,C4250,C4430,C4621,C4622,C4640,C4641,C5101, | |
| C5102,C5111,C5191,C5210,C5212,C5341,C5441,C6140,C6161,C6191, | |
| C6241,C6280,C6301,C6561,C6711,C6712,C6782,C6783,C6870,C6871, | |
| C7060,C7150,C7100,C7164,C7351,C7451,C7521,C7541,C7701,C7941 | |
| Brass Flat Bar Alternate name | Brass plate synonyms |
| Comparison table of national brass grades and standards | ||||||
China |
Germany |
European |
|
lnternational |
the US |
Japan |
GB |
DIN |
EN |
|
ISO |
UNS |
JIS |
| H96 | CuZnS | CuZnS | CWS00L | CuZnS | 21000 | 2100 |
| H90 | CuZn10 | CuZn10 | CW501L | CuZn10 | 22000 | 2200 |
| H85 | CuZn15 | CuZn15 | CW502L | CuZn15 | 23000 | 2300 |
| H80 | CuZn20 | CuZn20 | CW503L | CuZn20 | 24000 | 2400 |
| H70 | CuZn30 | CuZn30 | CWS0SL | CuZn30 | 26000 | 2600 |
| H68 | CuZn33 | CuZn33 | CW506L | CuZn35 | 26800 | 2680 |
| H65 | CuZn36 | CuZn36 | CWS07L | CuZn35 | 27000 | 2700 |
| H63 | CuZn37 | CuZn37 | CWS08L | CuZn37 | 27200 | 2720 |
| HPb63-3 | CuZn36Pb1.5 | CuZn35Pb1 | CW600N | CuZn35Pb1 | 34000 | 3501 |
| HPb63-3 | CuZn36Pb1.5 | CuZn35Pb2 | CW601N | CuZn34Pb2 | 34200 | - |
| H62 | CuZn40 | CuZn40 | CWS09N | CuZn40 | 28000 | 3712 |
| H60 | CuZn38Pb1.5 | CuZn38Pb2 | CW608N | CuZn37Pb2 | 35000 | - |
| HPb63-3 | CuZn36Pb3 | CuZn36Pb3 | CW603N | CuZn36Pb3 | 36000 | 3601 |
| HPb59-1 | CuZn39Pb2 | CuZn39Pb2 | CW612N | CuZn38Pb2 | 37700 | 3771 |
| - | CuZn40Pb2 | CuZn40Pb2 | CW617N | CuZn40Pb2 | 38000 | 3771 |
| - | CuZn28Sn1 | uZn28Sn1As | CW706R | CuZn28Sn1 | 68800 | 4430 |
| - - |
CuZn31Si1 CuZn20Al2 |
CuZn31Si1 CuZn20Al2 |
CW708R CW702R |
CuZn31Si1 CuZn20Al2 |
(44300 (68700 |
- (6870 |
| product specifications | Area | Copper thickness | Size | Weight | Weight | Weight |
| (mm²) | (mm) | (length) | (kg/m) | (kg/3m) | (kg/6m) | |
| XZH-25×4 | 100 | ≥0.25 | 3m or 6m | 0.796 | 2.387 | 4.774 |
| XZH-27×7 | 189 | ≥0.25 | 3m or 6m | 1.493 | 4.478 | 8.956 |
| XZH-30×3 | 90 | ≥0.25 | 3m or 6m | 0.72 | 2.16 | 4.319 |
| XZH-30×4 | 120 | ≥0.25 | 3m or 6m | 0.954 | 2.863 | 5.727 |
| XZH-40×4 | 160 | ≥0.25 | 3m or 6m | 1.272 | 3.816 | 7.632 |
| XZH-40×5 | 200 | ≥0.25 | 3m or 6m | 1.584 | 4.753 | 9.507 |
| XZH-50×5 | 250 | ≥0.25 | 3m or 6m | 1.98 | 5.94 | 11.88 |
| XZH-50×6 | 300 | ≥0.25 | 3m or 6m | 2.371 | 7.112 | 14.223 |
| XZH-60×6 | 360 | ≥0.25 | 3m or 6m | 2.844 | 8.532 | 17.064 |
| XZH-60×8 | 480 | ≥0.25 | 3m or 6m | 3.781 | 11.343 | 22.687 |
| XZH-80×8 | 640 | ≥0.25 | 3m or 6m | 5.04 | 15.12 | 30.241 |
| XZH-25×4 | 100 | ≥0.40 | 3m or 6m | 0.805 | 2.414 | 4.829 |
| XZH-27×7 | 189 | ≥0.40 | 3m or 6m | 1.503 | 4.51 | 9.02 |
| XZH-30×3 | 90 | ≥0.40 | 3m or 6m | 0.73 | 2.191 | 4.382 |
| XZH-30×4 | 120 | ≥0.40 | 3m or 6m | 0.965 | 2.896 | 5.791 |
| XZH-40×4 | 160 | ≥0.40 | 3m or 6m | 1.286 | 3.858 | 7.716 |
| XZH-40×5 | 200 | ≥0.40 | 3m or 6m | 1.599 | 4.797 | 9.593 |
| XZH-50×5 | 250 | ≥0.40 | 3m or 6m | 1.998 | 5.993 | 11.986 |
| Surface Finish | Definition | Application |
| 2B | Those finished, after cold rolling, by heat treatment, picking or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry,Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treament after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building construction. |
| NO.1 | The surface finished by heat treament and picking or processes corresponding there to after hot rolling. | Chemical tank, pipe. |
| European standard | DIN standard (former) | ASTM | Typical properties/application | Manufacturing standard | |||||||||||||
| Cu-ETP | CW004A | E-Cu 58 | 2.0065 | C11000 | standard alloy for electrical components, main appli- | DIN EN 13599 | |||||||||||
| E-Cu 57 | 2.0060 | cation in switchgear construction | DIN EN 1652 | ||||||||||||||
| Cu-HCP Cu-PHC | CW021A CW020A | SE-Cu | 2.0070 | C10300 | hydrogen-resistant, very high conductivity, easy to weld | DIN EN 13599 | |||||||||||
| Cu-OF | CW008A | OF-Cu | 2.0040 | C10200 | hydrogen-resistant, very high conductivity, very easy to weld | DIN EN 13599 | |||||||||||
| Cu-OFE | CW009A | C10100 | high purity, Cu 99.99% fur vacuum switching systems, targets | DIN EN 13604 | |||||||||||||
| Cu-DHP | CW024A | SF-Cu | 2.0090 | C12200 | very easy to weld, without particular conductivity requirements | DIN EN 1652 DIN EN 1653 AD-2000W6/2 |
|||||||||||
| CuAg0,10P | CW016A | CuAg0,1P | 2.1191 | C10700 | mould plates, commutator rings, electrodes | DIN EN 13599 | |||||||||||
| CuCrZr | CW106 | CuCrZr | 2.1293 | C18150 | mould plates, welding equipment, furnace and mould engineering, heavy current engineering | DIN 17670 | |||||||||||
| CuNi2Si | CW111C | CuNi2Si | 2.0855 | C18000 | mould engineering, machine parts, die casting equipment | by arrangement | |||||||||||
|
Products can be supplied by arrangement in compliance with other international standards such as BS, JIS and GOST.
|
|||||||||||||||||
Quality Control
Production Processing
Packing & Delivery
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We are glad to provide free samples to you, but we do not offer the freight.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
A: We provide after-sale service and offer 100% guarantee on our products.
