Hot Rolled Stainless Steel 304 Plate For Chemical Industrial Tanks
| Place of Origin | China |
|---|---|
| Brand Name | SSZG |
| Certification | ISO SGS BV CE |
| Model Number | Stainless Steel Sheet |
| Minimum Order Quantity | 1 Ton |
| Price | According To The Quantity |
| Packaging Details | Standard Seaworthy Package |
| Delivery Time | 7-10days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50000 Tons Per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Stainless Steel Sheet | Sample | Avaliable |
|---|---|---|---|
| Surface Finish | 2b/Ba/Hl/No.4/8K/Embossed/Gold/Rose Gold/Black Gol | Application | Construction,Industry, Architecture, Decorate |
| Edge | Mill Edge & Slit Edge | Magnetic | Weak |
| High Light | Embossed Stainless Steel 304 Plate,Industrial Stainless Steel 304 Plate,Embossed Hot Rolled Stainless Steel Plate |
||
Product Description
Hot Rolled Stainless Steel 304 Plate For Chemical Industry Equipment Industrial Tanks
Hot-rolled stainless steel, mechanical properties not as good as cold-rolled, but there are good toughness and ductility. Cold-rolled stainless steel plate due to the good hardening, toughness is low.
In order to ensure all kinds of stainless steel yield strength, tensile strength, elongation and hardness and other mechanical properties to meet the requirements, prior to delivery must be stainless steel annealing, solution treatment, aging heat treatment.
|
Material
|
Hot Rolled Stainless Steel 304 Plate For Chemical Industry Equipment Industrial Tanks |
| Material Origin | TISCO, BAOSTEEL, JISCO, LISCO, DINGXIN |
| Grade | Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc |
| 300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 | |
| 200series:201,202,202cu,204 | |
| 400series:409,409L,410,420,430,431,439,440,441,444 | |
| Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc | |
| Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304 | |
| Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo | |
| Technology | Hot Rolled |
| Length | 100~12000 mm |
| Width | 100~2000 mm |
| Thickness | Cold Roll:0.1~3 mm |
| Hot Roll:3~100 mm | |
| Surface | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed |
| Leveling: improve flatness, esp. for items with high flatness request. | |
| Skin-Pass: improve flatness, higher brightness | |
| Other Choices | Cutting:Laser cutting, help the customer to cut the required size |
| Protection | 1. Inter paper available |
| 2. PVC protecting film available | |
| Price Item | FOB,CIF,DDU,FCA,EXW ,.etc |
|
Surface
|
Characteristic
|
Processing Technology
|
|
N0.1
|
Original
|
Pickled after hot rolling
|
|
2D
|
Blunt
|
Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling
|
|
2B
|
Blurred
|
Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + tempering rolling
|
|
N0.3
|
Matte
|
Polishing and tempering rolling with 100-120 mesh abrasive materials
|
|
N0.4
|
Matte
|
Polishing and tempering rolling with 150-180 mesh abrasive material
|
|
NO.240
|
Matte
|
Polishing and tempering rolling with 240 mesh abrasive materials
|
|
NO.320
|
Matte
|
Polishing and tempering rolling with 320 mesh abrasive materials
|
|
NO.400
|
Matte
|
Polishing and tempering rolling with 400 mesh abrasive materials
|
|
HL
|
Brushed
|
Grind the surface of the steel belt with an appropriate grinding grain size to make it show a certain longitudinal texture
|
|
BA
|
Bright
|
The surface is annealed and shows high reflectivity
|
|
6K
|
Mirror
|
Rough grinding and polishing
|
|
8K
|
Mirror
|
Fine grinding and polishing
|
Chemical Composition
| Grade | C | Si | Mn | P | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
Surface Refrence
Certification

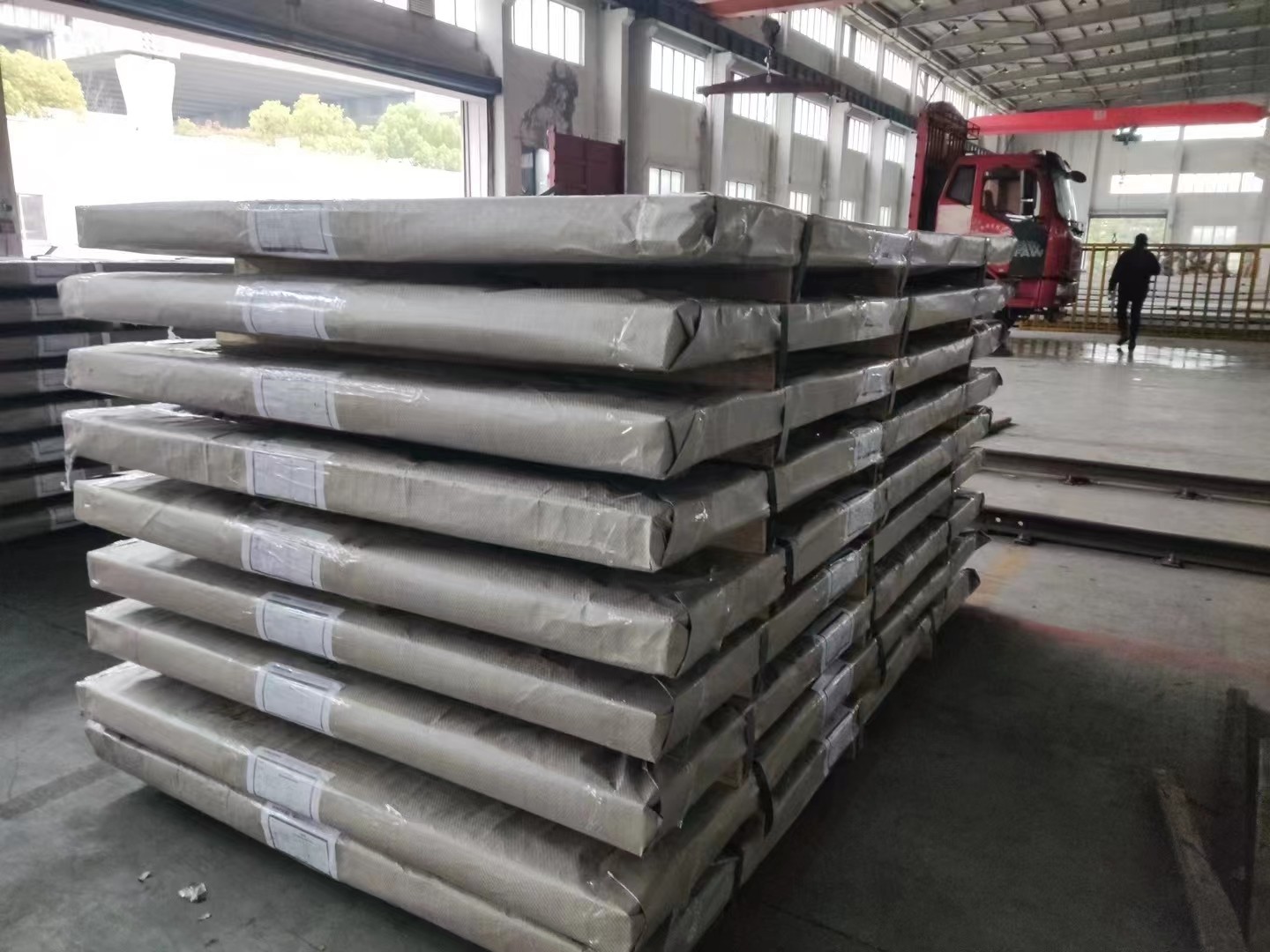

Packing & Shipping
|
Packing
|
PVC waterproof paper packed , strong sea-worthy wooden package and steel plate packing
|
|||
|
Shipping port
|
Shanghai
|
|||
|
|
Length: ≤6m, loaded in 20GP Container
|
|||
|
Length: ≤12m, loaded in 40GP Container
|
||||
|
Size of 20GP Container (inside :5898*2352*2393mm)
|
||||
|
Size of 40GP Container (inside:12032*2352*2393mm)
|
||||
|
Size of 40HQ Container (inside:12032*2352*2698mm)
|
||||
|
Delivery time
|
Within 7-15 days, depending on the situation
|
|||
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: We are cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
